Edge processing

The longitudinal milling and cutting of edges.

There are 6 options available for this. Each of the four edges can be set individually.

1. None: No processing at all.

2. Chamfer (mm): Beveling the edge with a specified depth in millimeters.

3. Chamfer (degrees): Same as above, but specifying the bevel angle in degrees.

• On the opposite side, the operation can be symmetrically mirrored with a switch.


• Depending on the selected type, 1, 2, or 3 parameters can be provided, each with a fixed and calculated value.

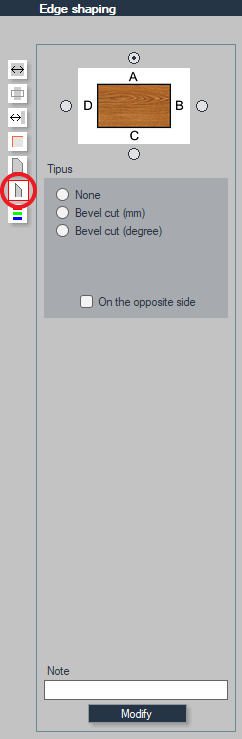

  • The specific edge to be processed can be selected from a diagram.


• We can select the edge to be processed in the figure.



Changes must be confirmed with the modify button.

Keywords: #edge processing #chamfering #milling #base element
