Edge banding

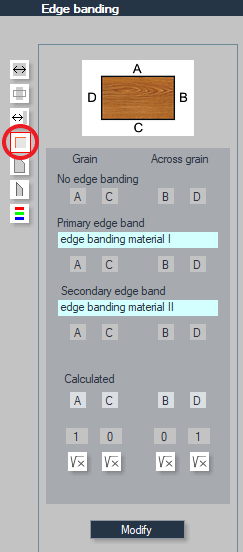

The fourth item on the right-hand tool tabs.

• Every base element can have two types of edge banding: primary and secondary. Each of the 4 sides must be set individually.


• You can choose from four options:


  • no edge banding


  • primary edge banding


  • secondary edge banding


  • calculated. Calculated edge banding means that the type of edge banding for a particular edge depends on the result from the Calculation table. The result can be 0, 1, or 2 in this case.

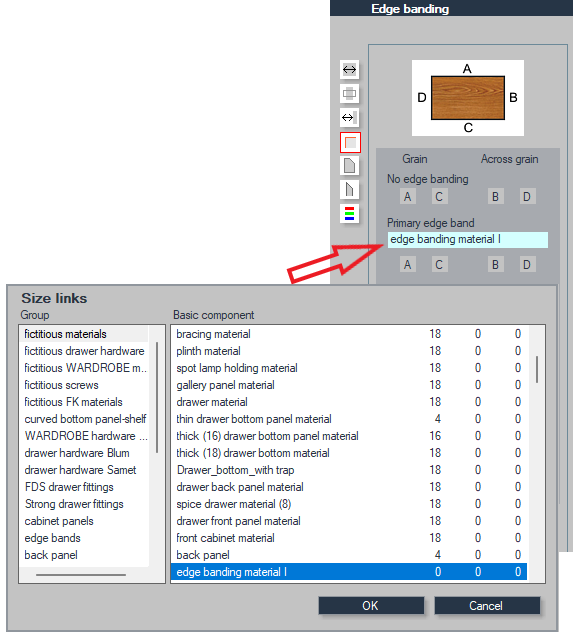

• By clicking on the darker fields, you can select the primary and secondary edge banding (fictional) material.

Changes must be confirmed with the modify button.

For additional edge banding settings, click here.

The color of the edge banding can be selected in the property settings.

The thickness and specific material of the edge banding can be chosen on the Manufacturing preparation / Change of material page.
