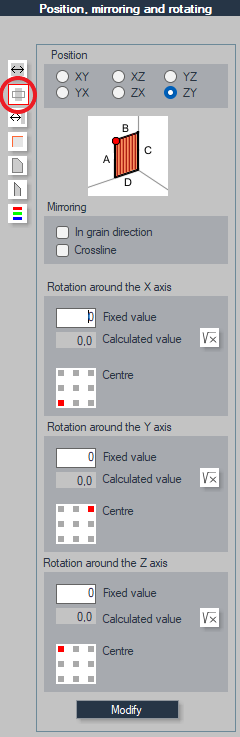

Position, mirroring, rotation

The second item on the right-hand tool tabs.

Position

The base element can be set in 6 different base positions, parallel to each coordinate plane, and depending on the thread direction, in 2 different ways. These are also illustrated in a small diagram for clarity. For example, XY means that the base element is aligned with the XY coordinate plane, and its thread direction is parallel to the X coordinate.

Mirroring

The base element can be mirrored along both the thread direction and the cross direction.

Rotation

It is possible to rotate around each axis with one fixed and one calculated value, specified in degrees. The rotation center can also be adjusted.

Changes must be confirmed with the modify button.
