Chamfer cuts

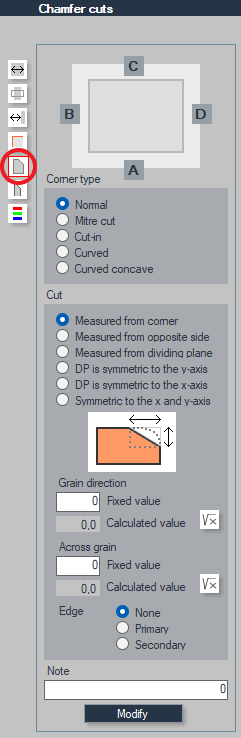

The fifth item on the right-hand tool tabs.

• Chamfer cuts can be defined for all 4 corners of the base elements. By clicking on the corners in the diagram above, you can choose from the available corner types.


• The first step is selecting the type of corner, which has 5 variations.

  1. - Normal: No corner cutout.

  2. - Chamfered: The corner is cut diagonally with a single cut.

  3. - Notched: Two perpendicular cuts are made on the edges.

  4. - Curved: The edge transitions smoothly into a curve without a straight break. The radius of the curve can vary in longitudinal and transverse directions, resulting in a regular quarter ellipse.

  5. - Concave Curved: Similar to the previous one, but the curve bends inward. The transition is always perpendicular.


• After specifying the type, you need to determine the starting points for the chamfer cuts.
  There are 6 options:


  • from the corner,


  • from the opposite side,


  • and measured from 4 different variations of the dividing lines.


• The position of the cutout can be defined with fixed and calculated values both longitudinally and transversely.


• It can also be specified separately whether there should be edge sealing on the cutout, and if so, what type.

Changes must be confirmed with the modify button.
