Drawing view

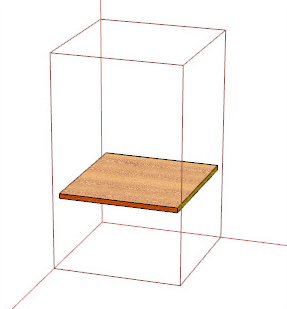

In this section, the focus is on displaying the base element in 3D visualization.

Views

•   Users can switch between perspectives, axonometry, and flat views.


•   There's an option to fill the base element with schematic colors or show it transparently. Additionally, users can choose whether to display edge seals (élzárások).



Setting the enclosing shape

In the bottom right corner, users can adjust the dimensions of the enclosing shape.

Base element dimensions, position

• Dimensions and positions of base elements are dynamically determined. The final dimensions are influenced by the furniture they fit into.


• The dimensions set here are not part of the base element's definition but are crucial for visualization and understanding how the element behaves at specific sizes.


• Width and depth dividing planes can be adjusted; however, height fitting planes cannot. The system includes two fixed fitting planes that divide the height dimension into thirds.

Creating schemes

• Eight schemes can be created based on the enclosing shape and dividing planes.


• Clicking on squares under sliders displays saved enclosure dimensions.


• By enabling the save switch and clicking a square, the current enclosure size is saved for that button.

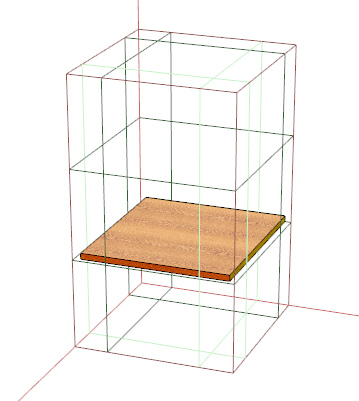

Displaying dividing and fitting planes

•   Dividing and fitting planes can be displayed using an icon in the top toolbar, making symmetrical dividing planes faintly visible.
