Rotation

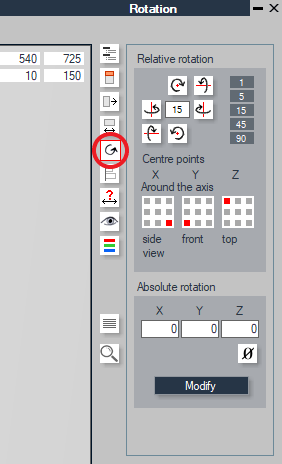

The 5th icon in the arranger allows you to rotate the selected furniture.

• You can rotate the selected element using relative or absolute value.


  • In relative rotation, the element rotates by the value entered in the middle field, according to the illustration on the icons. You can set the rotation axis to specific points of the bounding shape (corners, midpoints). After rotation, the rotation value is entered into the absolute fields. By modifying these fields and clicking the modification button, you can set the element to absolute angles.

TIP: Rotation is only possible for a single selected piece of furniture. If you want to rotate multiple elements together, it's better to use invisible walls and arrange them on those. This simplifies the arrangement, and the elements can be moved together later.

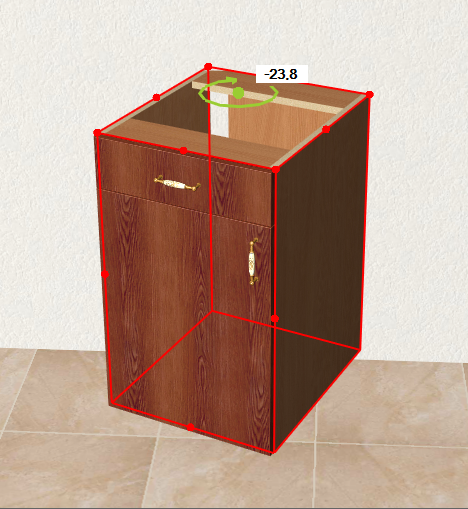

• One of the new features in version 3.7 is that you can rotate placed furniture in the arranger space using the mouse. Furniture can be rotated using the green point above them.



Keywords: #rotation
