Front settings

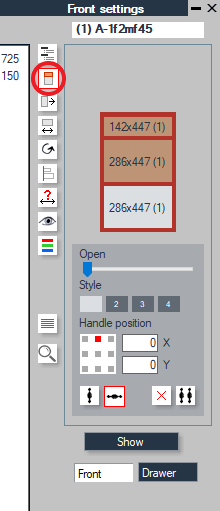

The second item on the right icon bar contains the front settings.

• Here, you can individually select the fronts of the current furniture.


• At the top, you can see a stylized image of the furniture with its fronts. Clicking on a front displays its properties, which can then be changed.


  • Open: Tilt and swing doors open, and drawers pull out. The slider controls the degree of opening. The direction of opening always depends on the position of the handle.


  • Style: As described on the properties page, you can choose from 4 styles for each front individually, displayed with a number. This allows for different fronts, colors, and handles within a single piece of furniture.


  • Handle position: You can change the relative position of the handle on the front and modify it vertically and horizontally with fixed values. You can set it to be horizontal or vertical.


    • None: No handle on the given front.


    • Double: The given front will have two handles, symmetrically placed horizontally. If you want a drawer with two handles that previously had one in the center, change the position to the edge; otherwise, both handles will be centered on top of each other.


• The Show button makes the changes visible on the drawing.

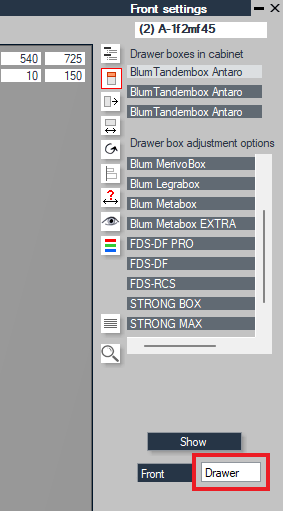

• On the Drawer tab, you can individually change the type of drawers in the furniture.



Keywords: #front settings #front style #handle #drawer interior
