Thumbnail creation

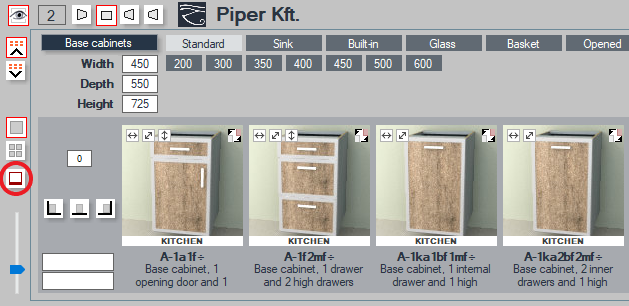

The icon circled in red allows us to view the thumbnail sampling window in the arranger.

Thumbnails can be created for furniture, fronts, handles, glass, cornices, light covers, drip edges, and plinths.

The thumbnail will be exactly what is visible in the small window in the arranger.

• Clicking on the label at the bottom opens a dropdown window where you can select what you want to create a thumbnail for.




• The thumbnail will be created for the element currently on the furniture. For example, if you want to create a thumbnail for a front, it will be assigned to the front currently on the furniture.


• The X button allows you to delete the current thumbnail associated with the selected element.
  Note! The X button does not close the thumbnail window but deletes the current thumbnail!


• The OK button allows you to create the thumbnail.


• Pressing the thumbnail icon again closes the thumbnail window.
