Selecting cabinet, properties, list price

Selecting cabinet and objects

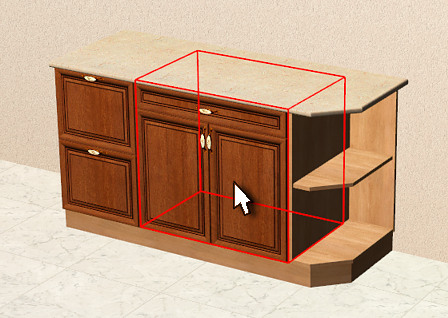

• Furniture or objects can be selected by clicking on them with the mouse.

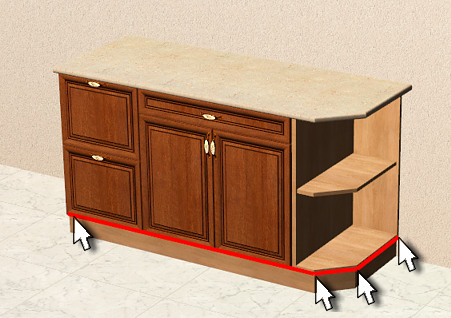

Selecting linear meter elements

• Linear meter elements can be selected only by clicking on their designated points.


• If you want to select multiple elements simultaneously, hold down the Shift key while clicking.


•   The left icon bar allows you to set whether you want the selection to be highlighted with a red outline.

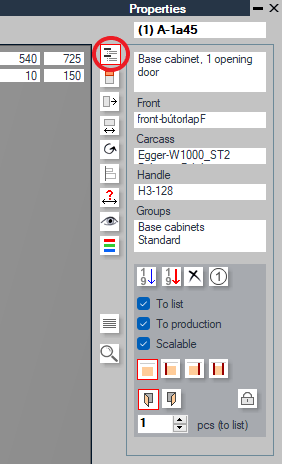

Properties of selected cabinet

The most important details of the selected cabinet appear on the first tab on the right.

• Front, carcass, handle, and countertop settings are visible even if no element is selected.


• The properties in the lower area can be adjusted.


  • The three switches correspond to whether the item should be included in the item list, in production, and whether it should have dimension lines on the dimensioned drawing.


  • The visible sides icon bar allows you to select which side of the furniture should have a different color (second carcass color) or material. In this case, the side will reach the wall even if wall spacing is set. The back panel solution on that side will also be grooved, regardless of the original setting.


  • Right-left switch. Handles that are not centered move to the other side, and the doors will open in the opposite direction. Patterns on asymmetrical fronts will also be reversed.


  • Fixed. If enabled, the element cannot be moved. This is practical for fixed elements like doors, windows, etc., to ensure they are not accidentally misplaced.


  • Adjust quantity. This only changes the quantity in the item list, affecting the price.


• In the upper right corner of the drawing surface, you can see the size (top) and position (bottom) values: from left to right, width, depth, height.

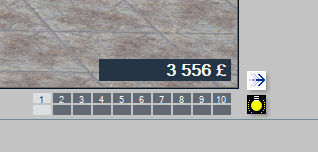

List price of selected cabinet

• In the lower right corner of the drawing surface, you can see the current list price of the entire room, provided the system is loaded with prices. If you click on a piece of furniture and hold the mouse button down, you will see only the price of that furniture without handles. When you release the button, the complete price for the whole room, including handles and linear meter elements, is displayed again. The prices of linear meter elements and furniture items in the collection, such as countertops, are not visible when clicked.

  This can also be turned off in the left icon bar or under the View menu in menu view.



Keywords: #properties #selection #list price
