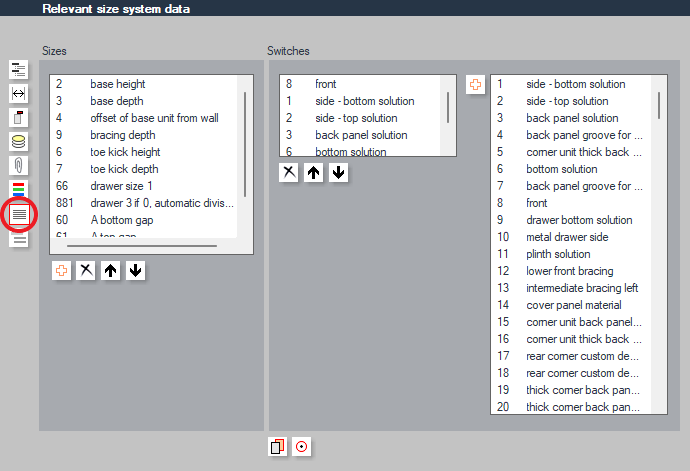

Size system outputs

On the size system outputs page, you can customize the dimension system elements that can be adjusted in the furnishing tool for each piece of furniture.

The left list is for managing the dimensions associated with the furniture, while the two right lists are for the switches.

Customizing dimension system sizes

The dynamic sizes assigned to the furniture are listed in the left list.

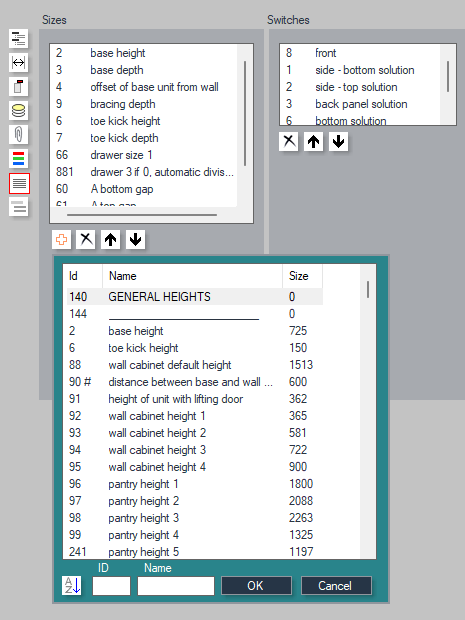

• You can open the list from which you can select dynamic sizes using the    icon below the list.


• In the green-framed pop-up window, you can search by entering characters in the text box at the bottom.


• Click the OK button to select the size.


• Icons below the Sizes list allow you to delete and move the selected sizes within the list.



Only one size can be selected at a time in the list.

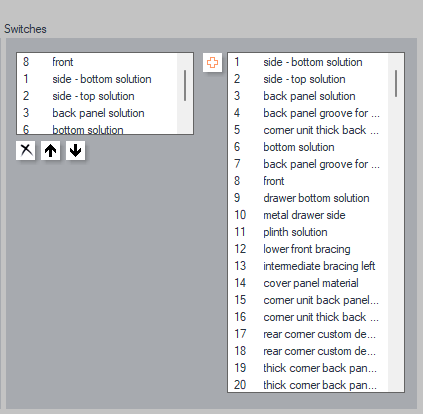

Customizing switches

The switches connected to the furniture are visible in the left list.

• You can select switches from the right list and add them to the left list using the   icon.


• Icons below the list allow you to delete and move the selected switches.

Only one switch can be selected at a time in both lists.

  The copy and paste icons below the table allow you to copy and paste entire outputs (sizes and switches) to other pieces of furniture.
