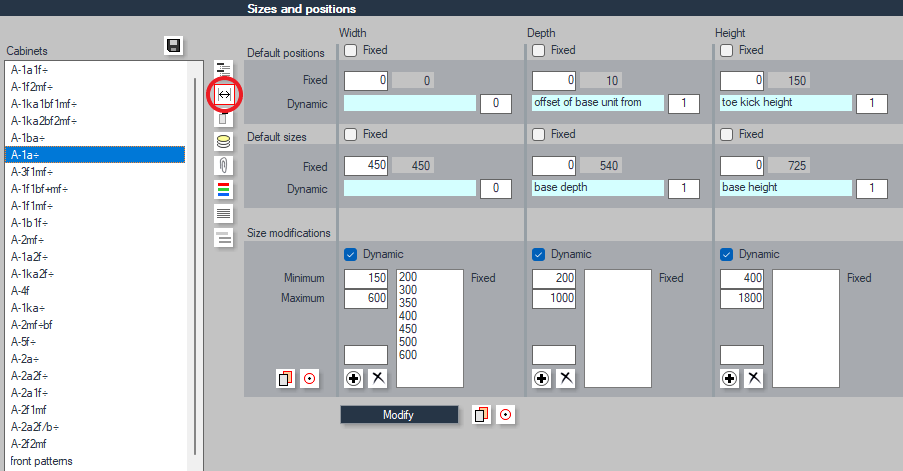

Size and positions

Here, you can set the initial positions, dimensions, and size change options for the furniture.

• Both fixed and dynamic values can be set for positions and dimensions in all three dimensions.


• By clicking on the lighter blue area, you can choose from the list of dynamic sizes. Right-clicking on the lighter blue area allows you to delete dynamic sizes. You can enter a multiplier in the white box next to the field, which automatically multiplies the dynamic value. The default value is always 1. The fixed size can be entered in the white box above the lighter blue area.


• The current value, which is the sum of the fixed and dynamic values, can be read in the adjacent grey (non-editable) area.


• When using the Fixed switch, the element cannot be moved in the specified dimension. However, if the specified initial value is linked to a dimension system element, it will follow and reflect changes made after furnishing. The same applies to initial dimensions; they cannot be changed when fixed, but they will follow changes in the dimension system afterward. For example, a wardrobe cabinet.



Size changes

• You can choose whether the element has a dynamically changeable size. If selected, you must specify the Minimum and Maximum values for size changes.


• You can create fixed values independently of the dynamic switch. These are automatically arranged in ascending order in the list. These values will appear as possible values during furnishing. If the element is not dynamic and multiple fixed values are provided, the element can only adopt these fixed values.


• To apply any changes, you need to press the Modify button, except for copying and pasting into another element. Copying and pasting within the size change frame only applies to the data within the frame, while the bottom button applies to the entire page.

Keywords: #initial furniture position #size change #dynamic #initial dimensions #size #position
