Mechanical outlets

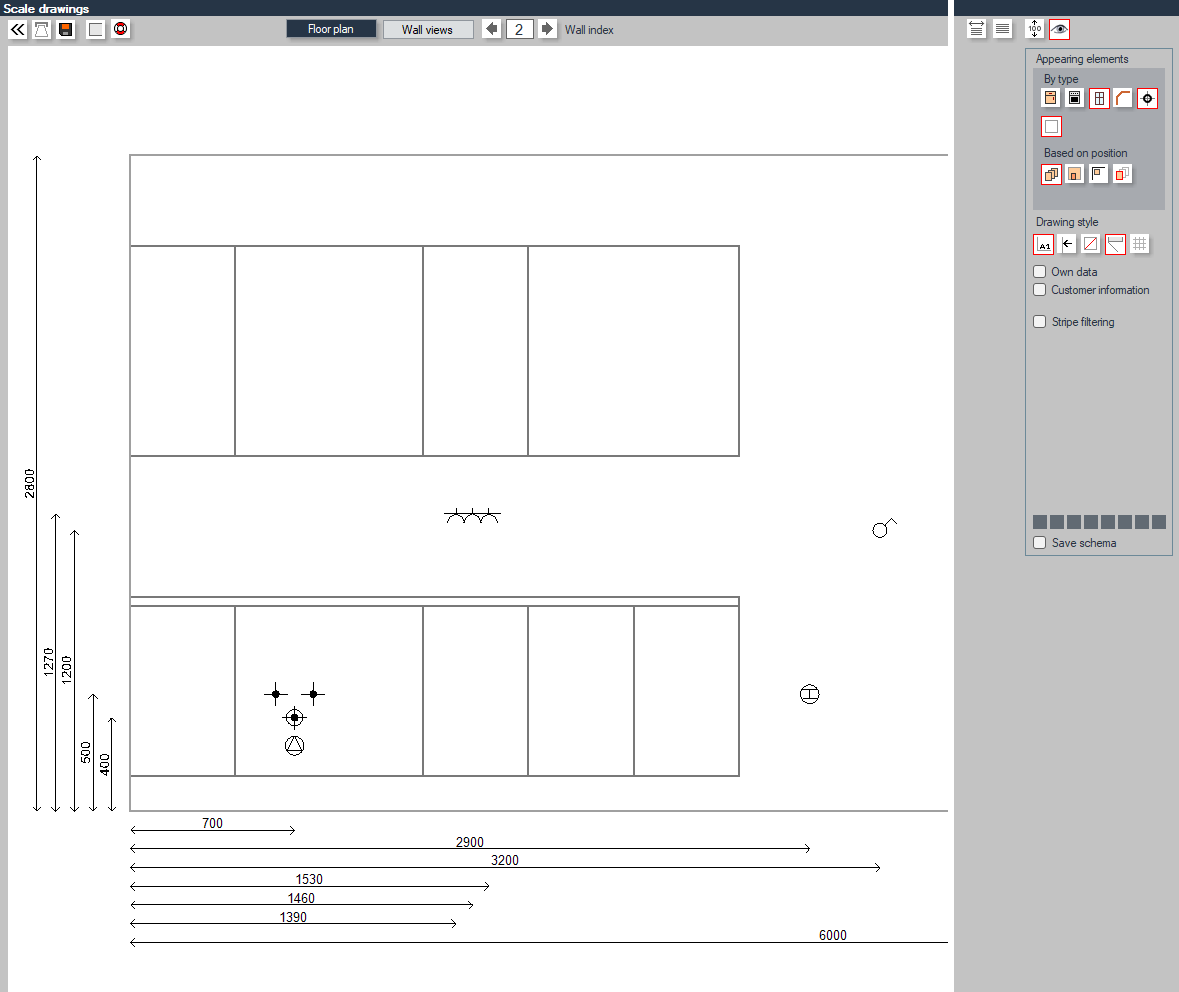

You can also create a dimensioned drawing for mechanical outlets.

• The outlets should be placed in the room in the traditional way, found in the Accessories 1 / Mechanics group.


• The difference compared to traditional elements is that their positioning and dimensioning are based on their center axis.


• For better clarity, it is advisable to turn on only the mechanical elements in the view filter by type, and to make non-visible elements transparent.

Symbols

	Water, sewer outlet, dishwasher connection
	Gas outlet
	Electrical socket, 220-230 V (single socket)
	Double electrical socket, 220-230 V (double socket)
	Electrical outlet, 380-400 V
	Light switch
	Double light switch
	Alternate switch

Keywords: #mechanical outlet
