View

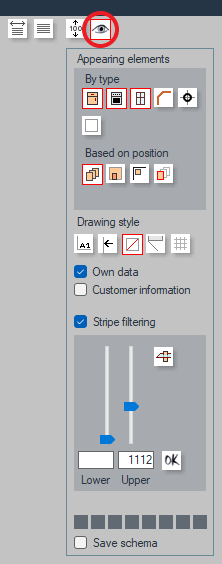

Here you can set which elements will appear on the drawing.

• You can filter by their type and position.

By type:

  Furniture.

  Machines.

  Wall objects (door, window, tile, etc.).

  Moldings (cornice, drip cap, etc.).

  Mechanical (water, sewer outlets, etc.).

  Even if the furniture is turned off, a gray contour indicates its position.

By position:

  All elements appear based on their position. This cannot be combined with the next three icons.

  Only elements on the current wall appear. For example, in a wall view, other wall furniture will not appear.

  Elements near the corner but not on the active wall. For example, a corner cabinet will appear on the drawing of both walls in the wall view.

  Selected elements.

Band filtering

• Furniture will only appear if it falls within the height range defined by the two sliders.


  • This is mainly important in floor plans to differentiate overlapping elements at different heights.


  • You can create separate drawings for base cabinets, upper cabinets, or even just the countertop.

  If this is enabled, elements intersecting the plane will also be included. For example, a pantry cabinet will appear among both base and upper cabinets.

You can also save schemes here, as described in the dimension lines section.
