Dimension lines

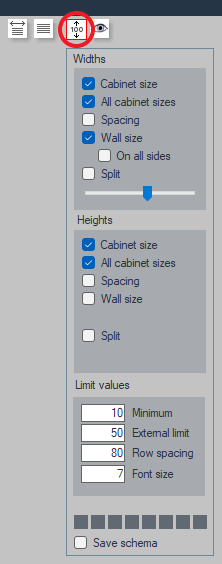

The dimension arrows will automatically appear on the drawing according to the settings.

• When the split is enabled, the dimension lines appear on both sides, distributed according to the slider. Adjusting the slider will show the dividing plane as well.


• Dimensions smaller than the minimum threshold will not be dimensioned.


• An external arrow dimension line will be applied for dimensions smaller than the outer limit value.

Saving Schemes

• The settings can be saved as schemes. Set the necessary settings, enable the save scheme switch, and then click on one of the colored squares. From now on, clicking on the respective square will apply the saved settings as the starting values.
