Texts

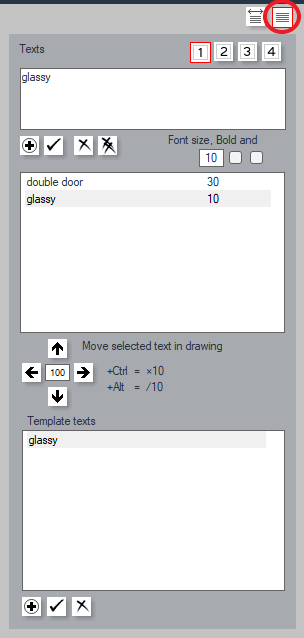

After pressing the    button, you can add custom texts to the currently visible dimensioned drawing.

• In the top Texts field, you can enter the text to be placed on the drawing.


• The buttons on the right below the text box allow you to customize the text with font size, bold, and italic options.


  • These options can also be applied to modify existing texts.


• You can add the text to the drawing using the    button.


  • After pressing the button, move your cursor over the drawing and click where you want to place the text.


• The texts on the drawing are visible in the middle list. Here you can select them,


  • use the    button to delete the selected text,


  • and the    button to modify the text.


  • The    button allows you to delete all texts from the drawing.


• The icons below the list allow you to move the selected text on the drawing by any desired value.


• You can add the text currently entered in the top field to the Template Texts list using the    icon below it.


  • When you select a text here, it appears in the Texts field above. From there, you can add it to the drawing like any other text.


  • The    and    buttons below the list allow you to modify or delete the template text, respectively.


• The    buttons allow you to add and select 4 different text variations for a drawing.
