Extra dimension lines

You can open the extra dimension lines page with the    button, where you can customize the dimension lines added in the furnishing tool.

In the furnishing tool, you can add extra dimension lines using the    buttons found on the Distances icon. The dimension lines set with the ruler in the furnishing tool will be added to the dimensioned drawing(s).

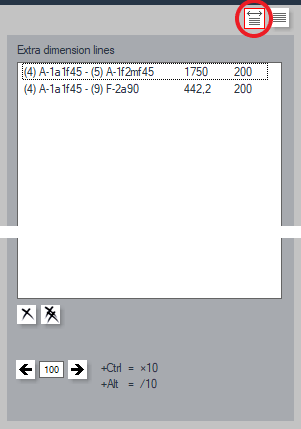

The Extra dimension lines added in the furnishing tool will appear in the Extra Dimension Lines list.

• The dimension line name will take the name of the furniture to which it belongs. If it is bound to multiple pieces of furniture, the other furniture will also appear in the name, separated by a hyphen.


• On the right, the first value is the length of the dimension line, and next to it, the position on the dimensioned drawing.


• You can delete selected lines with the    button.


• The    button allows you to delete all extra dimension lines.


• The arrows below the list allow you to move the line on the drawing by the specified value.
