Optimization - Settings

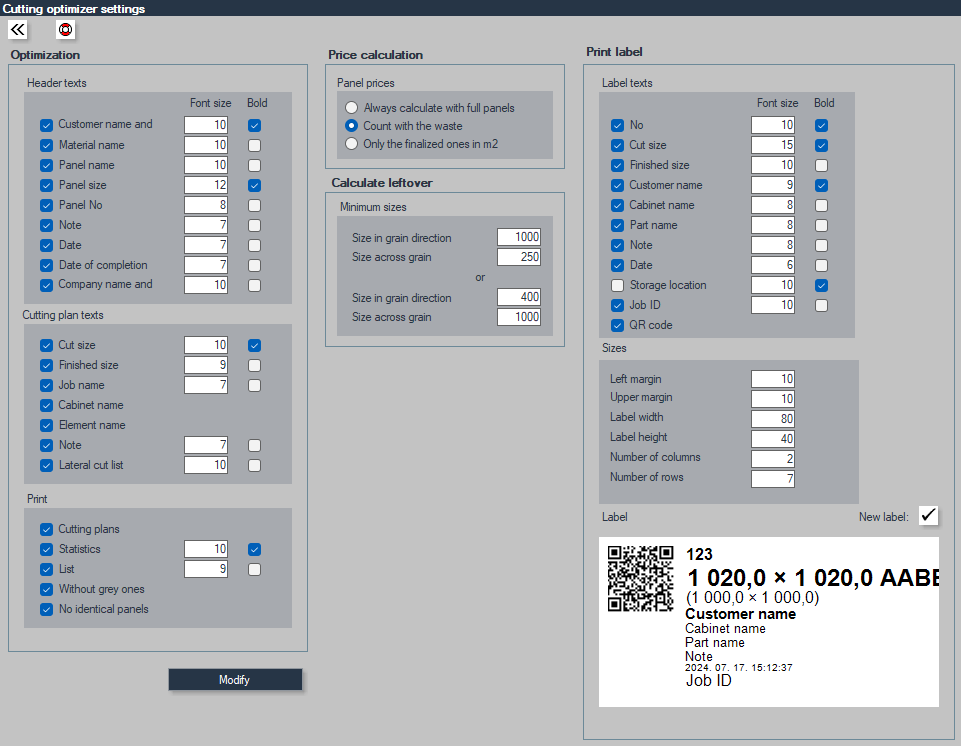

The settings can be opened from the Optimization page by clicking the button circled in red.

Displayed texts, prices, and remnants settings

• Settings allow you to control where and what appears, in what size, and whether in regular or bold text.


• Header texts the material name, board name, size, and serial number will always appear next to each other on the board drawings, with the font values assigned to the first one being the default. These same elements appear on the list in separate rows with their values.


• Board drawing texts the job, furniture, and element names will also appear next to each other, so values can only be set for the first one.


• Label texts the furniture name and element name will appear on the same line if the font size is set to 0 for the element name.


• The label's proportional image can be refreshed by clicking the    icon.




Price calculation

There are three different methods for calculating prices:

1. Always calculates using the full board size, even if remnants are used or if a large piece remains.


2. Calculates with remnants, deriving the price from the board areas, subtracting the remnants, meaning the waste is also charged.


3. Only considers the square meter price of the finished sheets, meaning the waste is not charged.



Remnant calculation

• You can set the size thresholds for what is considered remnant waste.



Label (etiquette) printing

• The first section allows you to set what appears on the label.


• The middle section allows you to set the margins, sizes, and layout of the label.


• Clicking the    button shows a preview of the label based on the settings.

Details on QR code settings can be found on the next page.

All changes can be saved with the modify button.
