Wall elements usage

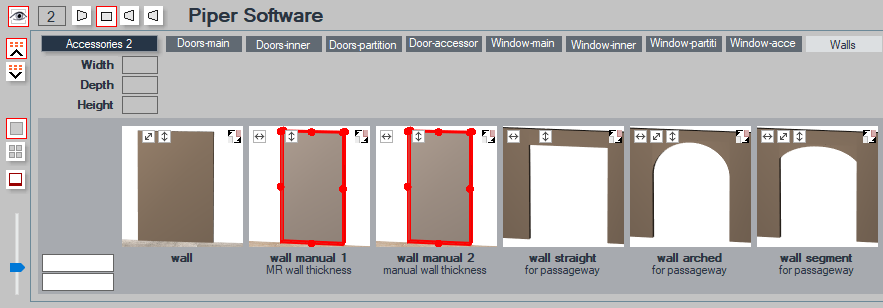

In the Accessories 2 / Walls cabinet group, you can find some customizable wall shapes that can be used to create interior walls, passages, or even ceilings.

When you place any wall from here, it will disable the wall without depth.

Plain, straight walls

The first three walls in the group are simple walls that can be freely resized.

• The first wall, when placed, will be exactly the same width and height as the wall without depth that is there. After that, this wall can be freely resized and rotated.


• Wall manual1: A fully adjustable wall, its depth will follow the wall thickness size element.


• Wall manual 2: A fully adjustable wall, its size is not influenced by anything.

These walls can also be attached to doors and windows, but they can be used as partition walls or even as a ceiling when rotated.

Walls used as passages

There are three types of walls that are mainly used as passages. Each wall consists of 3 different elements that are attached to each other. The walls always follow the middle element.

By moving and resizing the middle element, we can adjust the width and position of the passage, and the two side walls will follow in position. Their size does not change in this case, it must be adjusted manually.

Deleting the middle element will also delete the associated walls.

Other walls

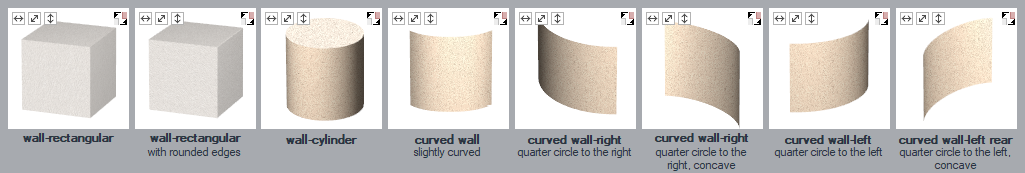

In the Accessories 1 / Basic Shapes furniture group, you can also find walls.

• The wall blocks here can be freely adjusted in all dimensions.


• The walls found here can be used just like any other placeable element. After or before placement, they can be freely resized and positioned.


  • The curve of curved walls can change with resizing.

Keywords: #wall #interior wall #passage #wall block #curved wall
