Editing continuous front patterns on drawer fronts

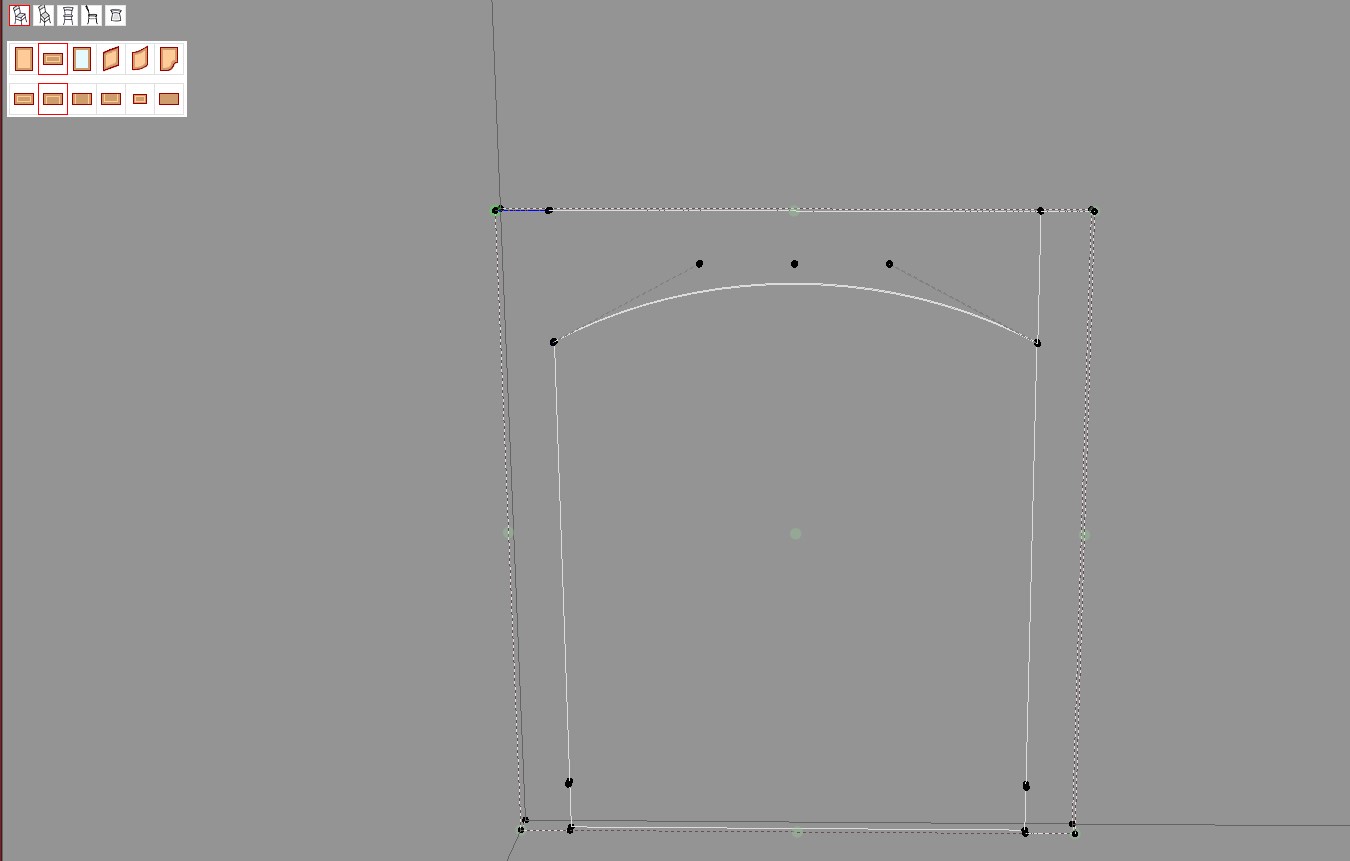

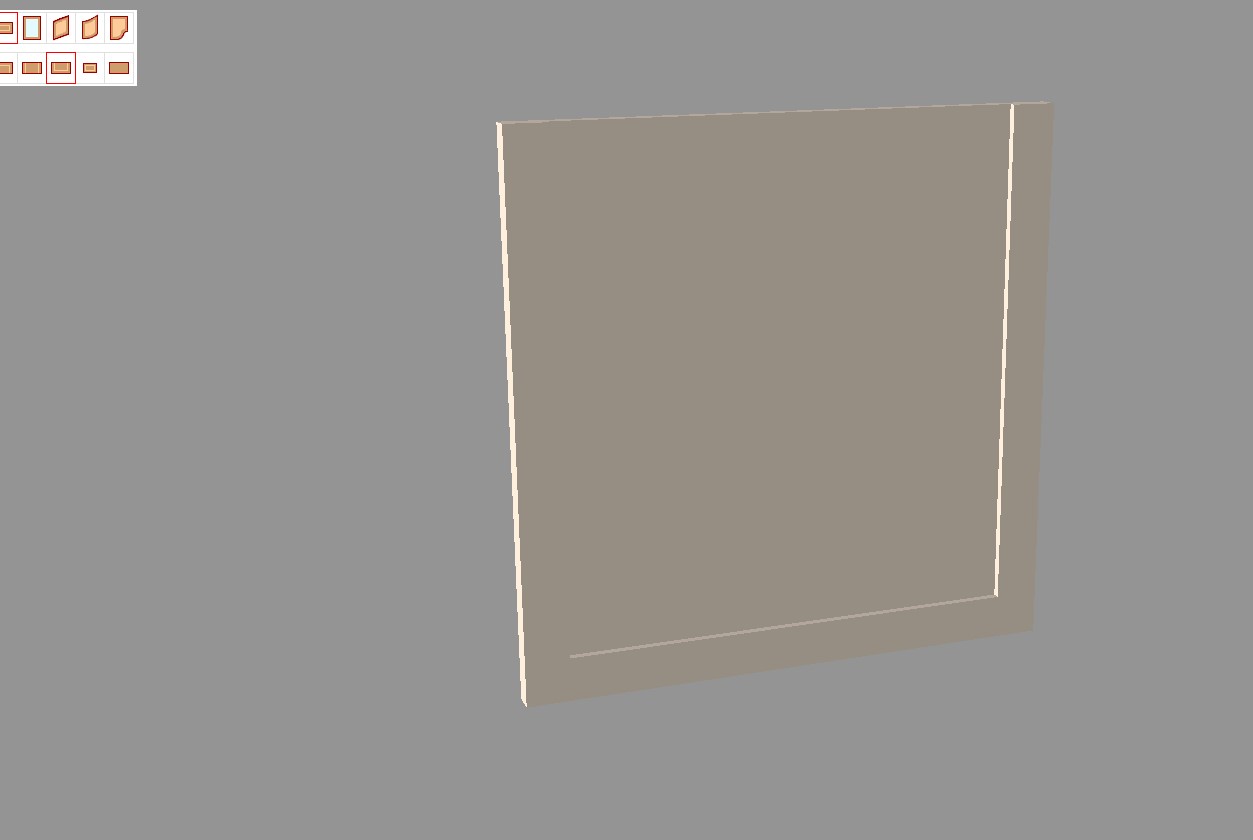

To start, create the continuous front patterns separately from bottom to top in the object designer.

Save these elements in the Objeck database.

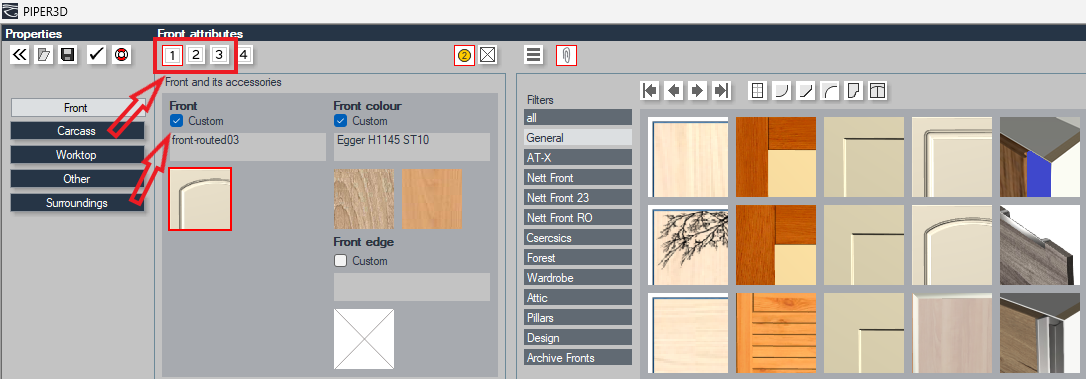

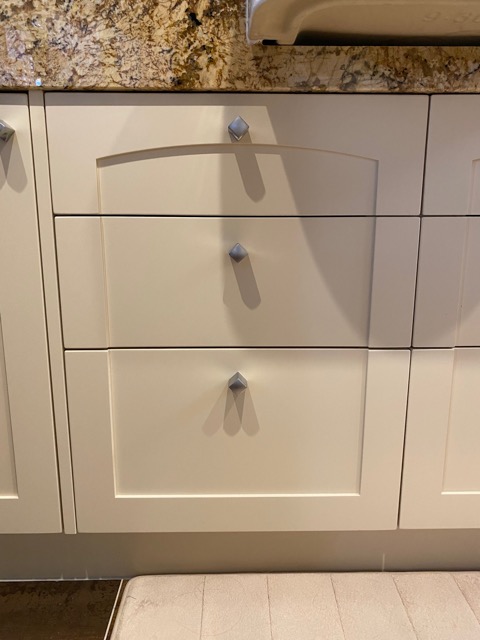

Next, set up a 3-drawer furniture piece with a unique front style by going into the design/property settings for the selected furniture. Assign the bottom pattern to the 1st front style, the middle pattern to the 2nd front style, and the top pattern to the 3rd front style. Check the custom checkbox for each one.

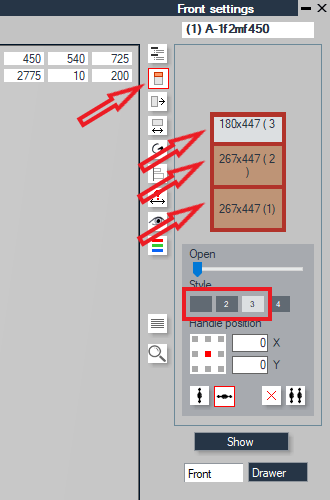

Return to the furnishing tool and, in the furniture's front properties, set the specific front styles from bottom to top, one by one.
