Links

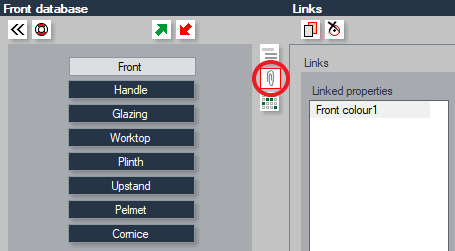

On this page, you can define bindings and filters for the selected elements.

You can specify, for example, which front colors a particular front can only appear with, or which carcass colors and handles can be chosen, etc.

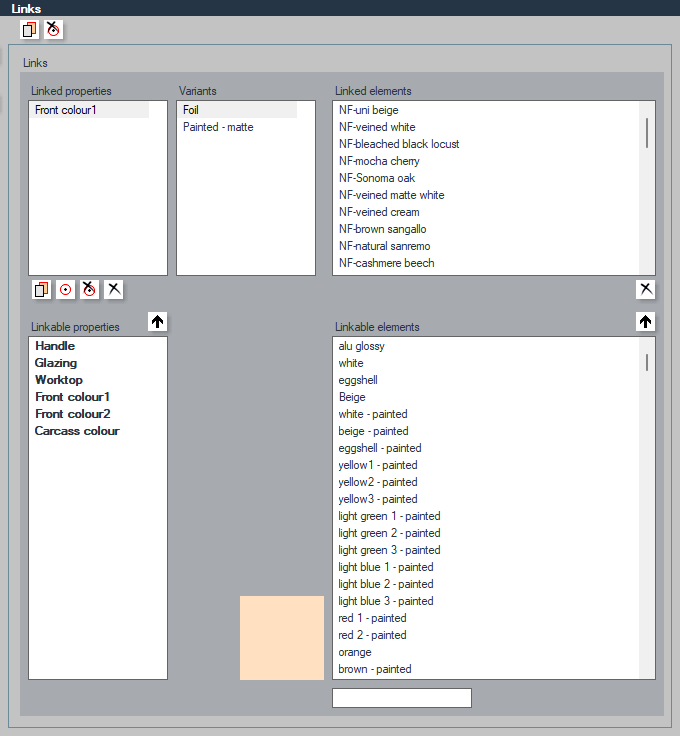

Linkable properties

• The bottom left list shows the properties that can be filtered for the selected element.


• This list varies by type; for example, only handle colors can be bound to handles, and only glass colors to glass, etc.


• You can add the selected property to the Linked properties list using the arrow above the list.


• If you select something in the linked properties list, all the elements that can be chosen for that property will appear in the bottom right list.


• From this list, you can select and bind the properties to the selected element using the arrow above. If there are variants, they can be bound separately.


  • Variants can be selected in the middle list.


•   You can delete selected rows from the list using the delete icons.


•   The copy-paste buttons allow you to transfer the complete binding structure from one element to another.
