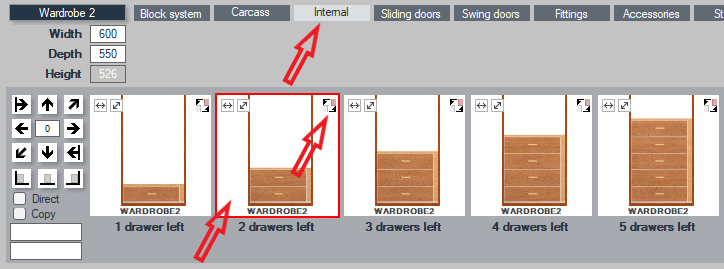

Wardrobe internal drawer settings

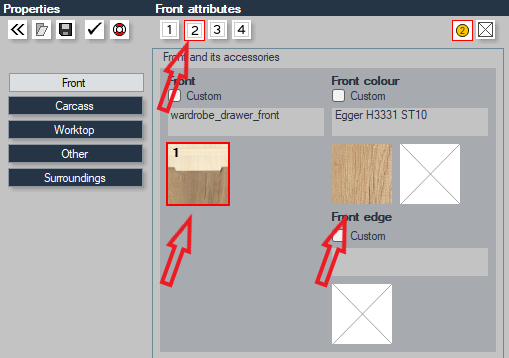

The fronts and colors of attached drawers can be set on the Properties front tab, under the 2nd.

The dimensions of the attached drawer elements are not adjustable; they are calculated from the size system, considering the height of the drawer fronts, gaps, spacer width, and material thicknesses.

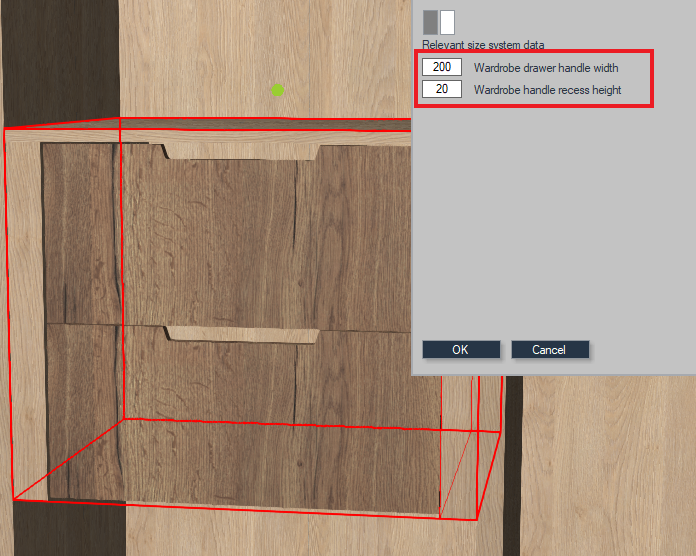

By default, a cut-out front designed for the wardrobe is set, and you can set the cut-out dimensions and other parameters of the drawer set by right-clicking on the front.

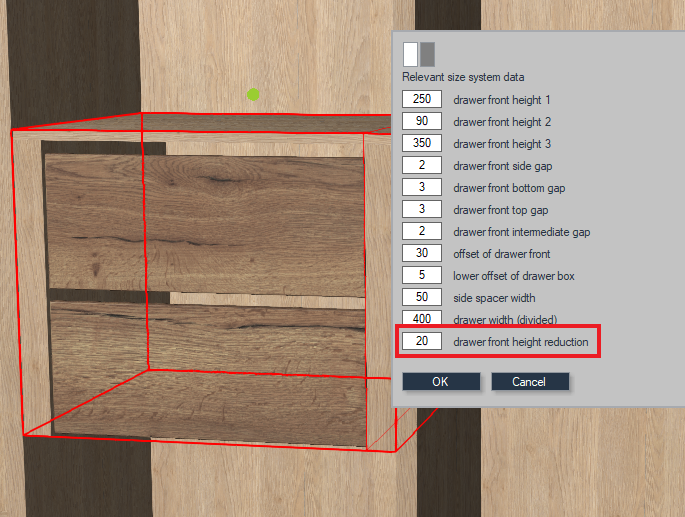

• If you only want to reduce the size of the drawer front to allow for hand access for pulling, you can set this value by right-clicking on any selected front. This drawer front height reduction also affects the cut-out front.

Unfortunately, the attachments of the attachments cannot appear on the workshop drawing, but if you need the documentation, it can be accessed with a few clicks.

• Select the drawer element, find it among the internal elements, click on it, and replace the element using the furniture replacement function.

Keywords: #wardrobe drawer #wardrobe handle #wardrobe drawer front color #attachment
