Set starting color scheme

How to change the starting color scheme when the program starts?

When Piper3D starts, the arranger interface appears with the properties saved under Base cabinets.

Although initially only the floor and wall colors are visible, every placed item will appear with the color, type, and handle saved in this scheme.

Each main group has a saved starting scheme, so if we switch to another one before starting the design, the properties associated with that scheme will load.

Modifying the schemes:

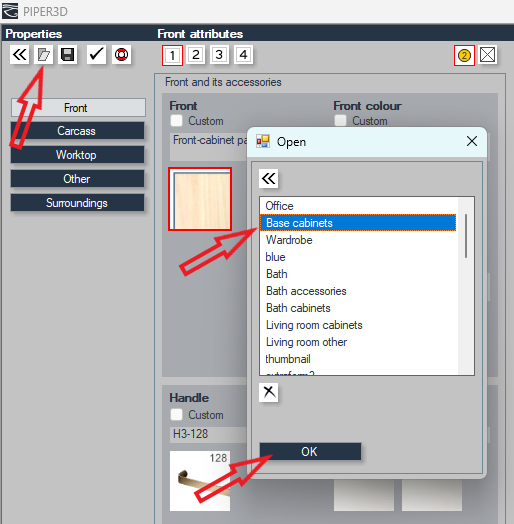

In the properties, click on the    load icon. In the pop-up window, select the main group you want to change (currently, this is the Base cabinets), then click the OK button.

Set the new colors, types, the drawer type under the corpus tab, and the basic settings of the material exchange under the others tab.

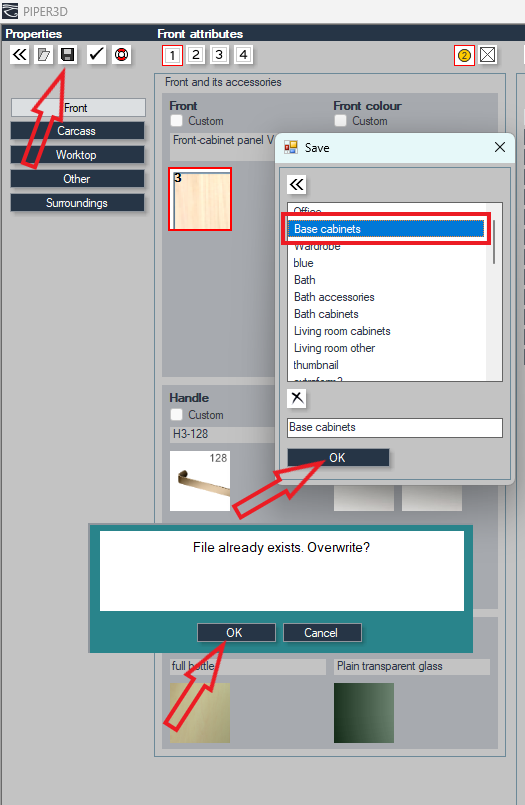

To finalize, click on the  save icon. In the pop-up window, select the main group (Base cabinets), then click the OK button in the pop-up window to confirm the modification.

Keywords: #starting scheme #starting colors #starting properties
