Door opening direction

I can't move the handle position to the other side in the designer.

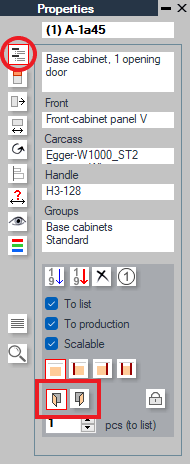

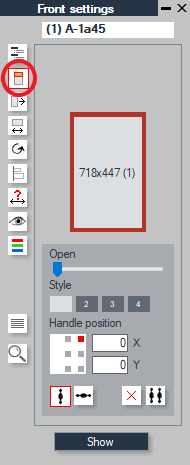

The handle position on the selected furniture can be set on the Front settings tab. Sometimes, as shown in the picture, the handle cannot be moved to the other side. This is because the furniture has a "right-left" front set in the Cabinet database / Identification tab. This means the front opening direction is changeable. To move the handle to the other side, you need to change the opening direction on the properties (first) tab of the right-side icon bar in the designer. This can be done with the buttons marked in red in the picture below. The handles can be moved to the center in any position.

These buttons are only visible if the furniture is set as "right-left" in the Furniture Database.

Keywords: #door opening direction #handle position #right-left
