Basic properties

Here you can read the basic data of the furniture and create automatically repeating elements.

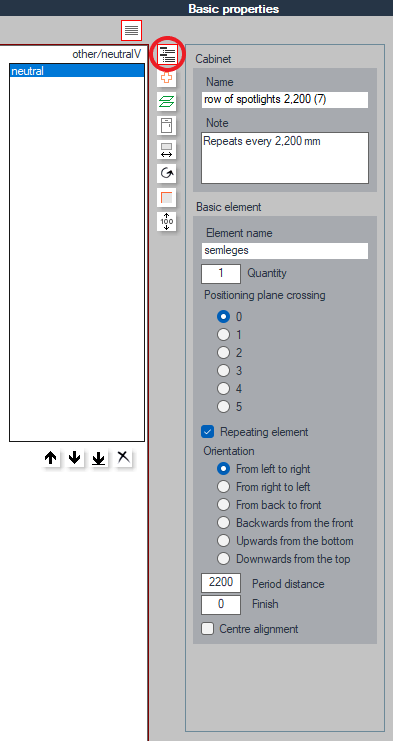

Cabinet data

• You can read the name and notes of the furniture.


• In the lower block, you can see the information of the selected base element.


  • You can specify how many pieces of the selected base element should be in the furniture. This will only affect the lists, not the arrangement.



Creating periodically repeating elements

• You can create periodically Repeating element with the repetition element switch enabled. For example, shelf railing pegs. The longer you set the shelf railing, the more pegs will automatically be added to it.


• The series starts from the current position of the given base element in the given Orientation, with the specified Period distance, and ends at the edge of the furniture, reduced by the Finish value.


• If the Centre alignment switch is enabled, the elements will also be evenly distributed, so the period distance does not change, only the two edges will be the same.
