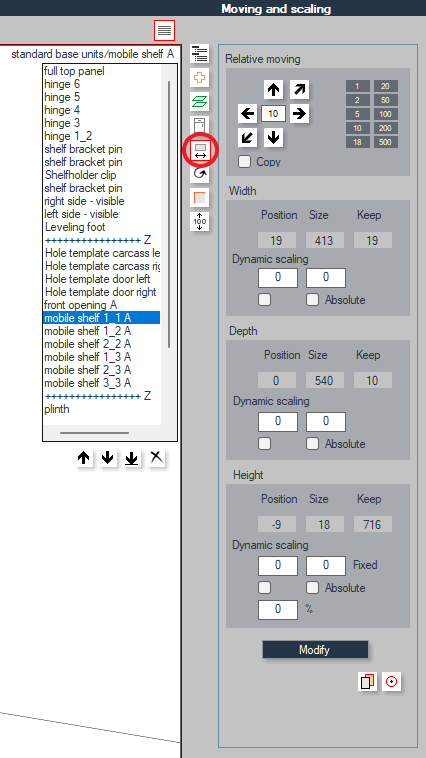

Moving and resizing

Here, you can move and resize the base elements within the furniture.

• The dimensions and positions of the base elements are defined on the base element editing page. Within the furniture, they are placed in the appropriate position and size accordingly. These can be modified here.


• Using the arrows, you can relatively move the selected element in the direction indicated by the arrows with the value entered in the center.


  • The upward right arrow indicates backward movement, and the downward left arrow indicates forward movement.


• Elements can also be moved and resized using absolute values. Here, the width/depth/height dimensions are handled on separate interfaces.


  • Both in size and position, the Absolute toggle can be used, upon which the base element loses its own definition values.


• Changes can be activated with the Modify button, except for relative movement, which takes effect immediately.


• The set parameters can be copied with the    buttons and pasted onto another base element.
