Settings for Front-Related Properties (front, handle, glass)
- The first group contains the front-related properties.

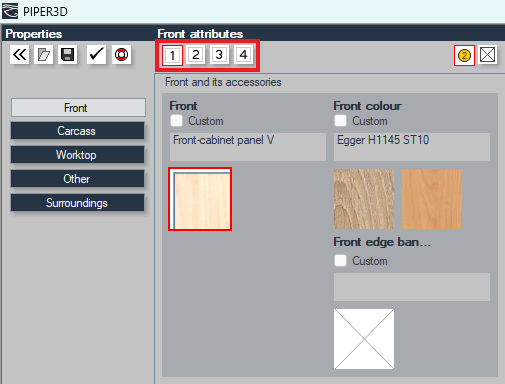

- Each property here can have 4 variations. Together, these are referred to as the front style. You can select from these using the icon bar above the frame.
- This means that within a single piece of furniture, up to 4 different fronts or handles can be displayed.
- By default, all fronts of the furniture are set to the first style.
These settings can be adjusted on the furniture in the 2nd tool tab.
Setting the edge profile

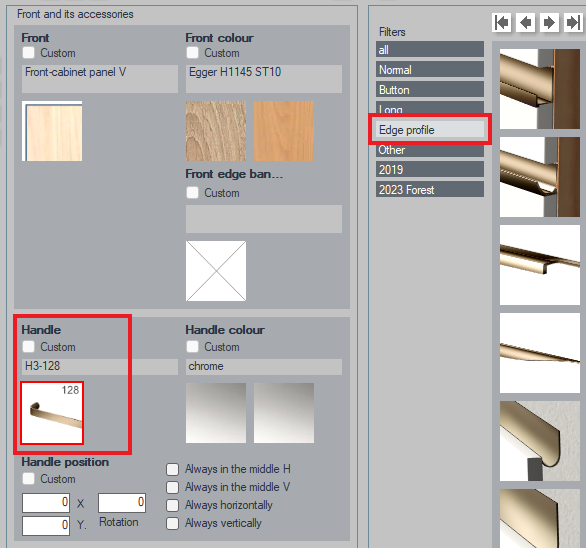

You can set the edge profile in the properties under handle selection.
- Clicking on the handle, select the edge profile option, where you can choose from various edge profiles.
- The program automatically subtracts from the front height to ensure the edge profile fits precisely.
Setting front style for a specific cabinet
Return to the main furnishing interface.

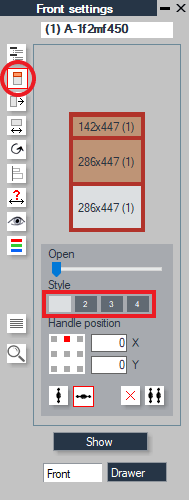

The second item in the right-hand icon bar is the front settings. Here, you can individually select the fronts of the current furniture.
- At the top, you can see a stylized image of the furniture with the fronts.
- Clicking on any of them shows its properties, which you can change.
- The selected front is always in a different color.
Style: As described above, you can choose from the 4 front styles here, individually for each front. If it is not 1, the number will appear on the front. This allows you to set different fronts, colors, and handles within a single piece of furniture.
Other front settings:
-
Open: Tilt and swing doors open, drawers pull out, and you can adjust the degree with the slider. The opening direction always depends on the handle's position.
-
Handle position: You can change the relative position of the handle on the front, and you can modify it vertically and horizontally with fixed values. You can set it to be horizontal or vertical.
-
No handle: No handle will be on the selected front.
-
Double handle: There will be two handles on the selected front, symmetrically placed horizontally. If you want a drawer with two handles that were previously centered, you need to change it to the outer position; otherwise, both will appear in the center.
Pressing the Show button will make the changes visible in the drawing.
Keywords: #front settings #handle settings #front related properties #edge profile
