General properties

On this page, you can set almost every property of the furnished furniture (front pattern, handle, colors, etc.).

Properties

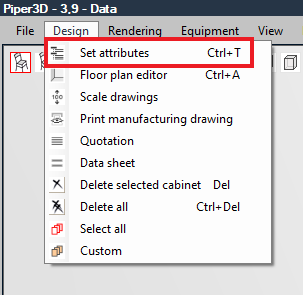

Opening properties (Ctrl+T) from the menu or icon view:

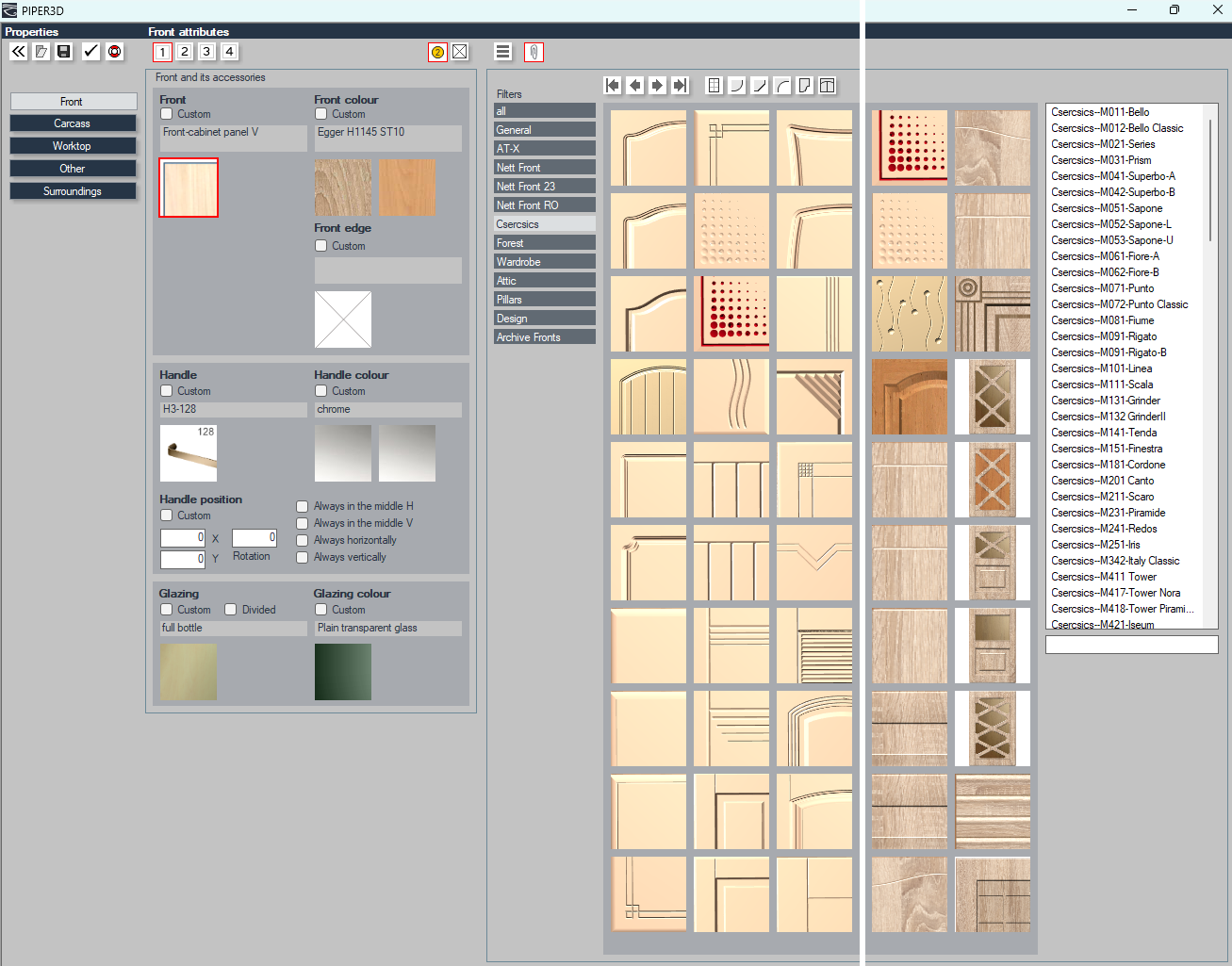

• The adjustable properties are divided into 5 units: Front, Carcass, Worktop, Other and Surroundings.


• • You can select from these in the left-hand list.


  • In the middle window, you see the adjustable properties for the selected group.


  • On the right side, the possible variations of the selected property are displayed, organized into different groups. The selected property is marked with a red frame. You can choose by clicking on one of the images on the right side or an item in the list.



Texture replacement

• When selecting a color, you can right-click on the selected element to quickly replace the color or texture with your own photo, or you can mix your own color!

Search in the list

• A search function is available in the list. On the right, you see the list of selectable colors, and you can search for colors in the text box below.



Filters

• The specific fronts can be filtered by types.


  •   Divided glass fronts


  •   Curved end fronts


  •   Broken straight end fronts


  •   Concave corner fronts


  •   Bottom curved fronts


  •   Top curved fronts


• These filters search based on the location (front type) of their files in the front editor, which should be considered when designing your own front.



Saving properties

• The current property settings do not need to be saved separately; they are automatically applied when returning to the furnishing section, and the drawing is regenerated each time. Saving is necessary only if you want to modify the default property settings.

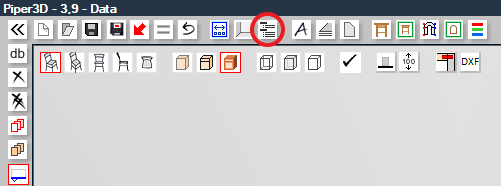

•     The save and load icons allow you to save and reload the complete property settings.


  • Each main furniture group has a saved property set with the same name, which is the starting property for that group. These can be overwritten and changed at any time. If you enter a furniture group with no furnished items in the room, the starting properties of the group are automatically loaded.

Immediate switching

Version 3.7+

•   By enabling the icon, all property changes are immediately applied, so modifications are instantly visible in the plan without needing to exit the property settings.


• This applies to custom property settings and front styles as well.

Two screen work

Version 3.7+

• You can drag the property setting window to any part of the screen by clicking on the header, even to a second screen, enabling dual-monitor work.


• You can resize the window as desired. If you drag the mouse to the edge of the window, a resizing arrow appears, and you can resize the window by holding down the left mouse button.

Keywords: #property #filter #immediate switching #two screen work
