Style and color settings for linear elements

The style and color of linear elements can be set on the properties/other page, except for the water barrier, which can be set on the countertop properties page.

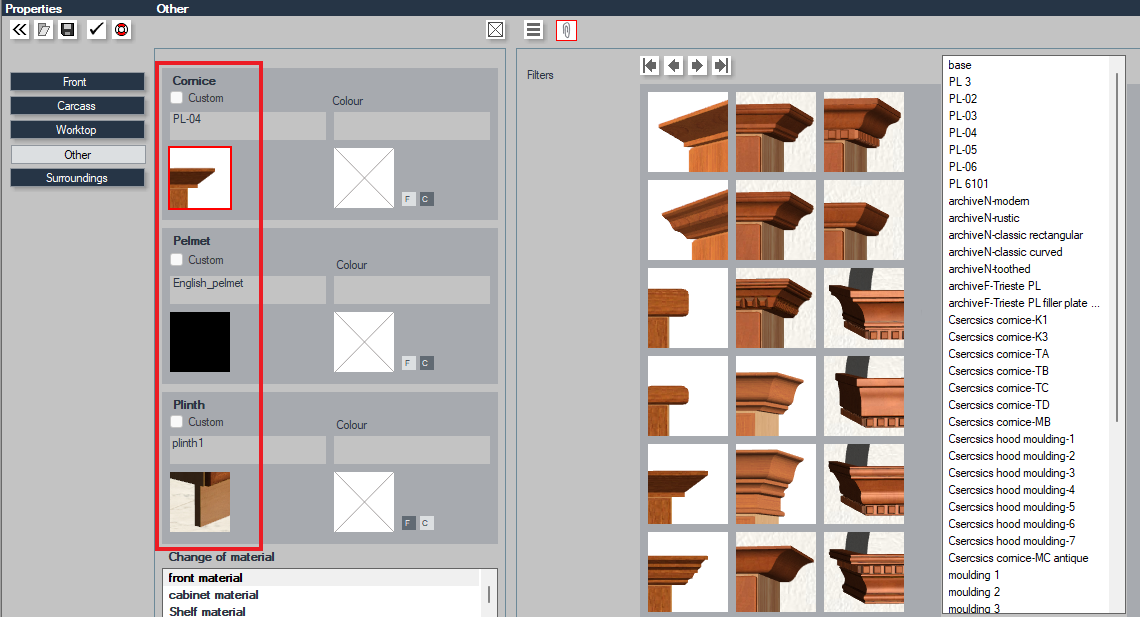

Style of linear elements

The style and pattern can be set in the left column by clicking on the preview image.

• Clicking on the preview image, the selectable styles will appear on the right side in the usual manner.


  • Here, you can select the style by clicking on the preview images or from the list on the right side.

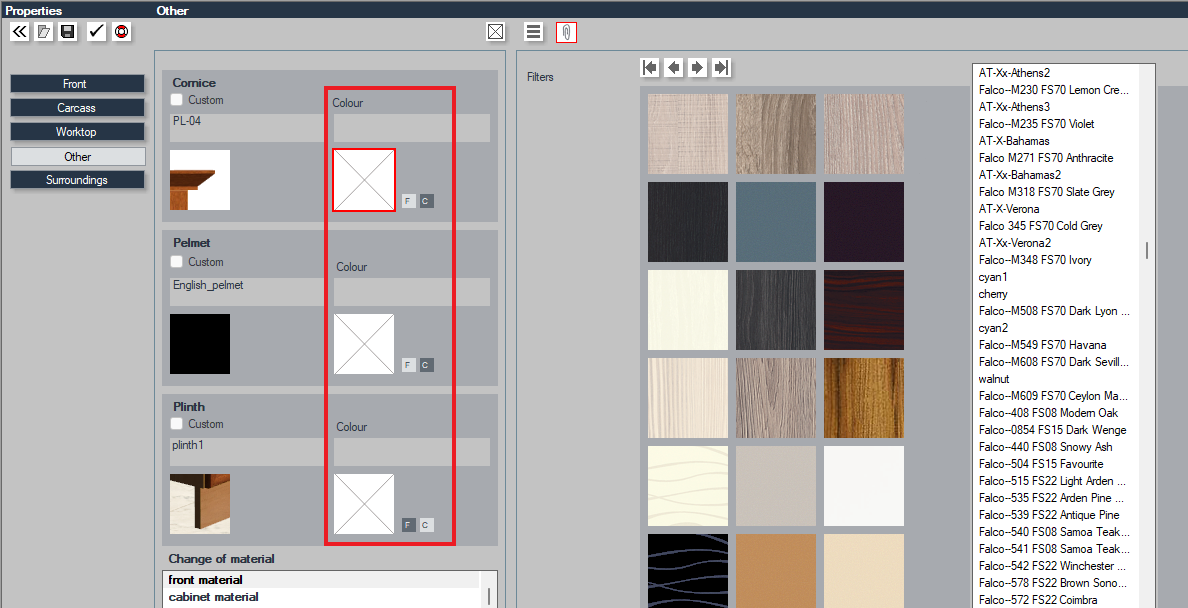

Color of linear elements

You can set the colors by clicking on the preview images in the right column or using the    switch.

• If no color is selected (the preview image is crossed out), the    switches next to it are valid.


  • If F is active (green is active), the linear element takes on the set front color.


  • If C is active, it takes on the carcass color.


• If you want to assign another color, clicking on the preview image will bring up all the front and carcass colors.


  • Here, you can select the color by clicking on the preview images or from the list on the right side.

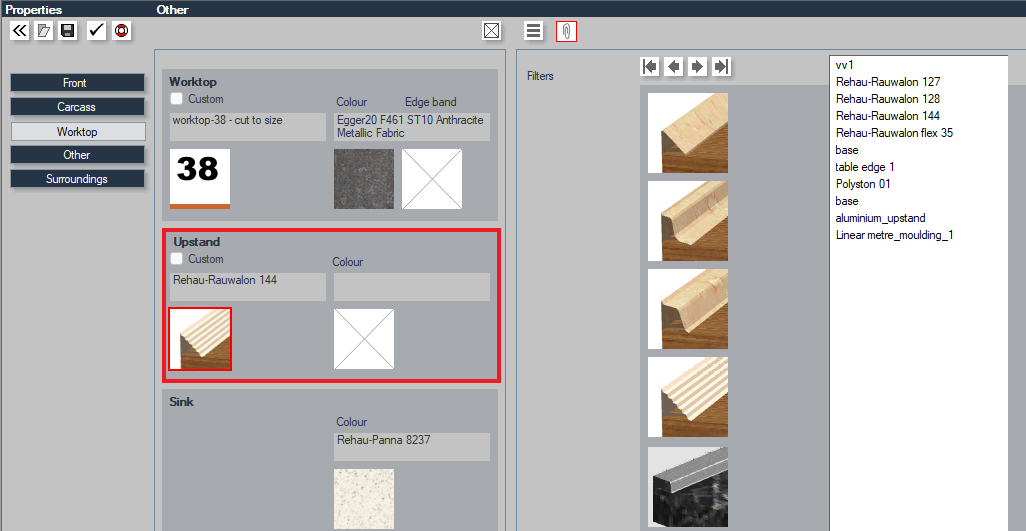

Style and color of the upstand

The properties of the upstand can be found under the countertop properties.

• If no color is set, the upstand takes on the color of the countertop.


• As described above, clicking on the left preview image changes the style, and clicking on the right one changes the color.
