Adjusting dividing planes on corner cabinets

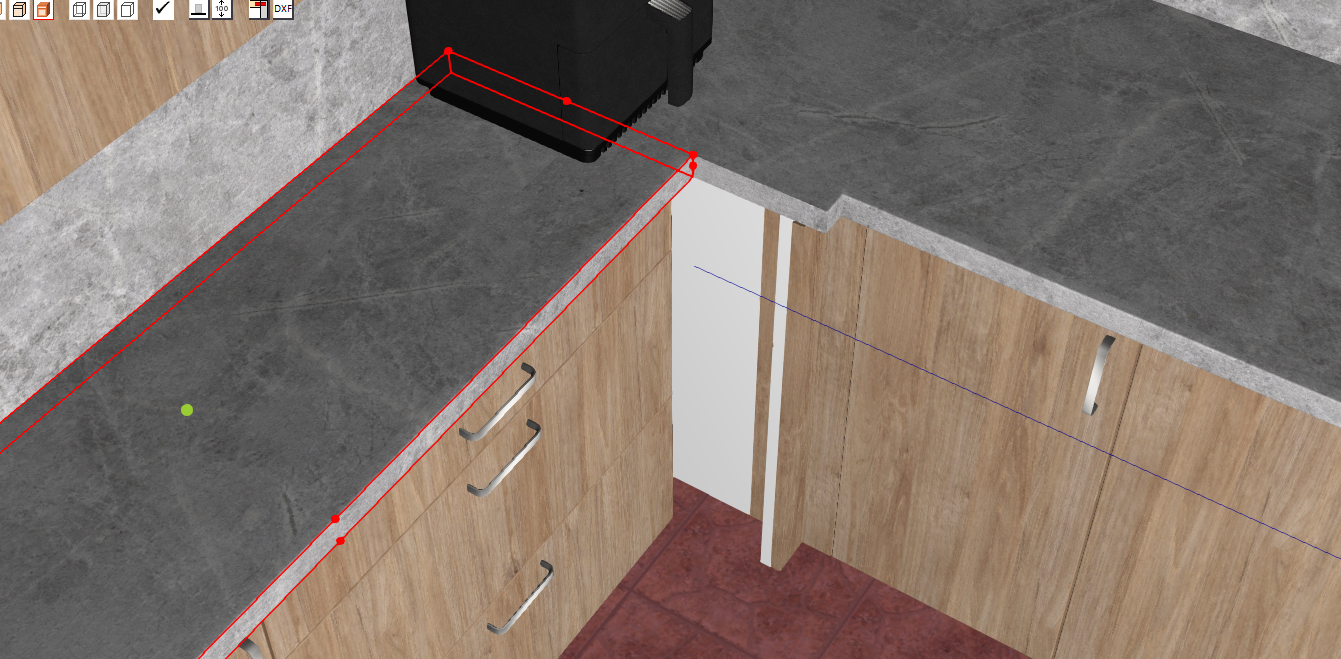

When continuing a row of cabinets with different depths after a corner cabinet, the front elements will not align, and the attached countertop will also need to be adjusted.

In our example, the row continues with a 340 mm deep cabinet after the corner.

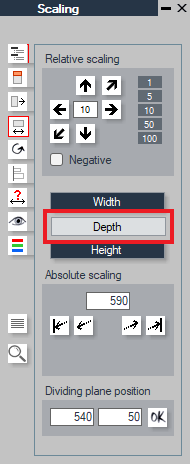

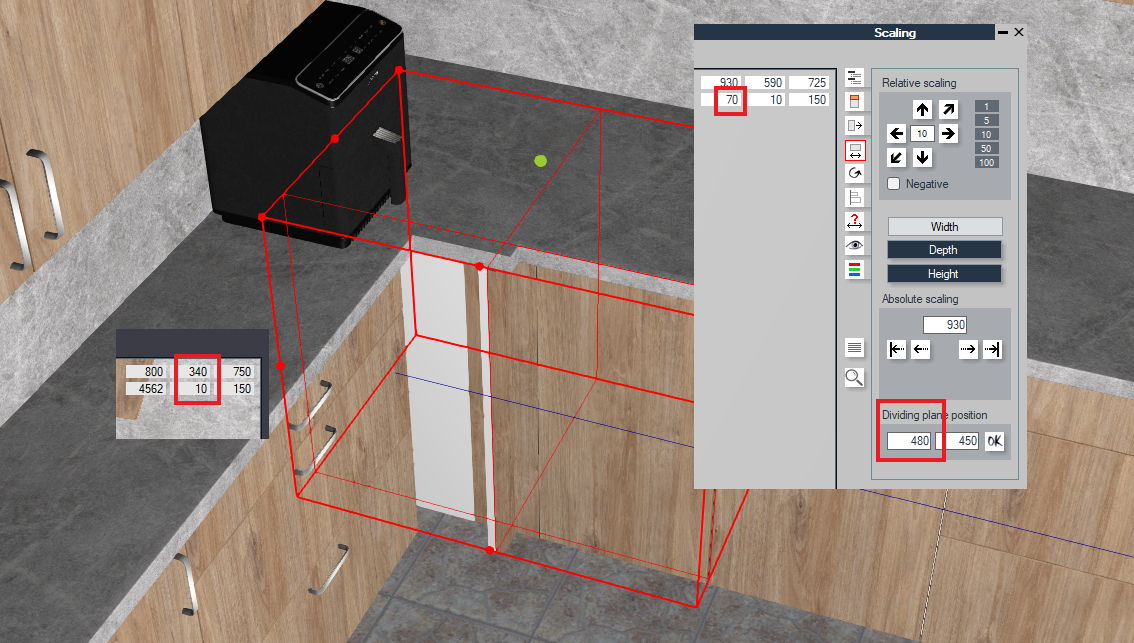

Select the corner cabinet, and on the right side under the size change tab, adjust the width dividing plane. For precise alignment, the sum of the side panel offset (70 mm) and the dividing plane position of the corner cabinet must equal the sum of the side panel offset (10 mm) and the depth (340 mm) of the narrow cabinet, which is 350 mm.

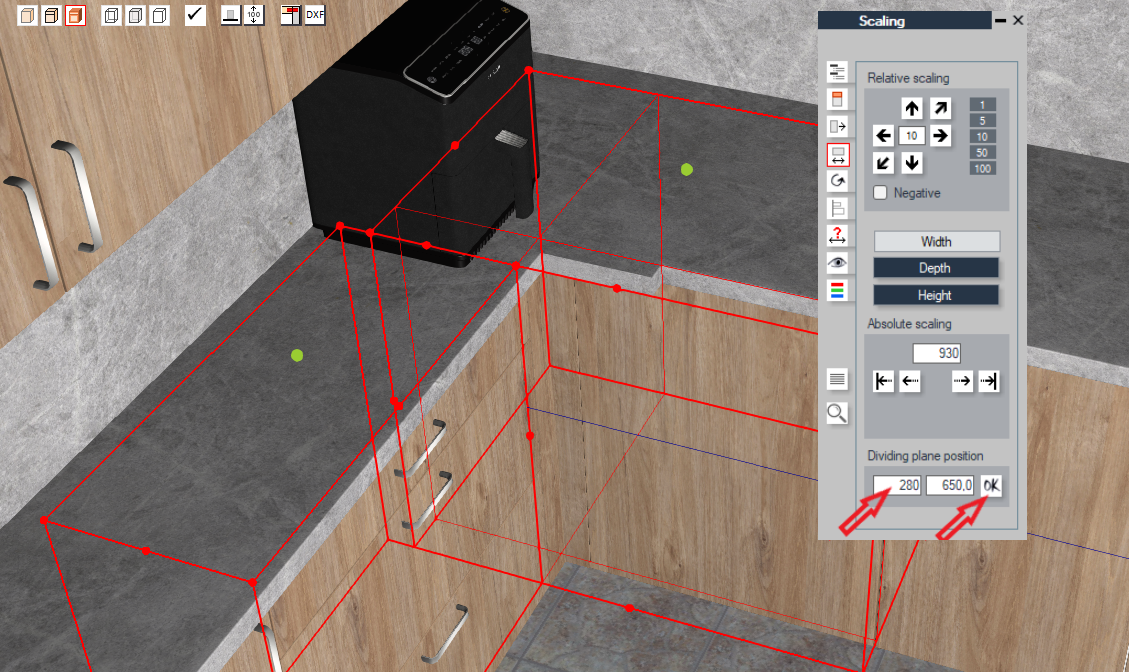

If we adjust the calculated value to 280 mm, the two cabinets will align perfectly.

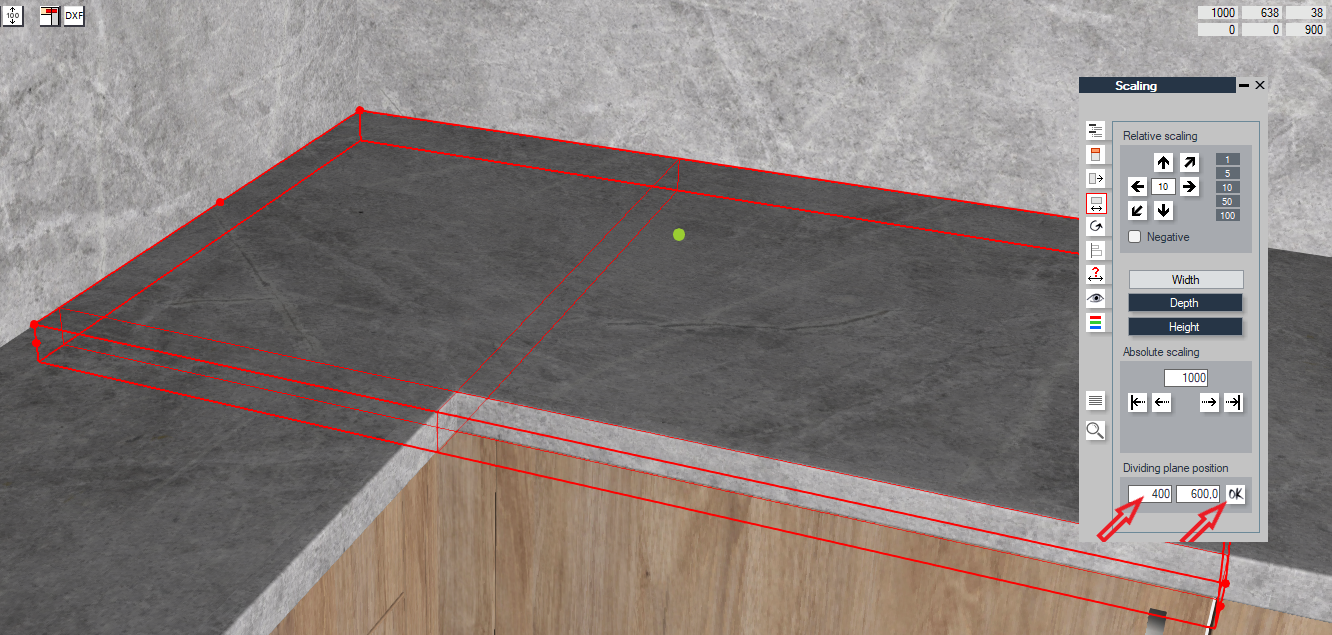

To fit the countertops, enter the narrow side depth (400 mm) into the corner countertop dividing plane position.

If the depth of the corner cabinet needs to be reduced according to the plan, these settings should be.

For right-side corner cabinets, make the adjustments in the right field.
