Room ceiling height, new size system link

To facilitate various calculations, attachments, and more accurate placement of several supplementary objects, we have created a new size system link, indexed at 1041, named Room ceiling height.

Previously, ceiling lights had a fixed size set to always place the lighting fixtures at a height of 2800 mm.

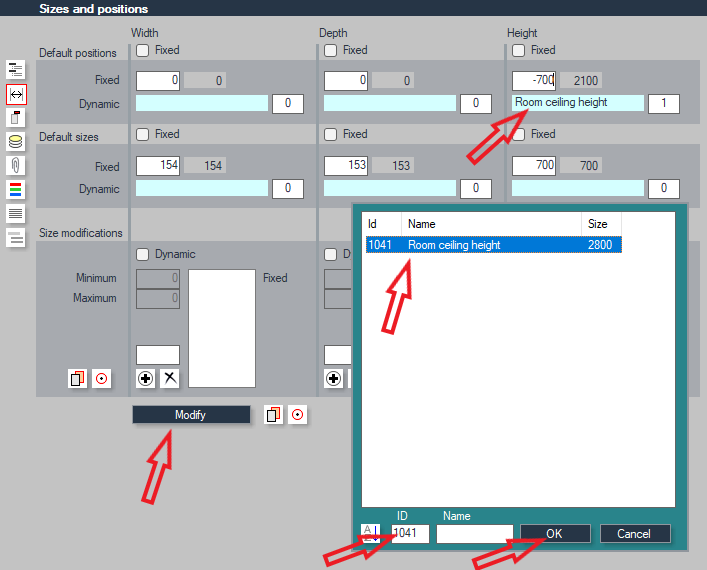

By applying this new dynamic size in the cabinet database, these elements will always adjust to the current ceiling height.

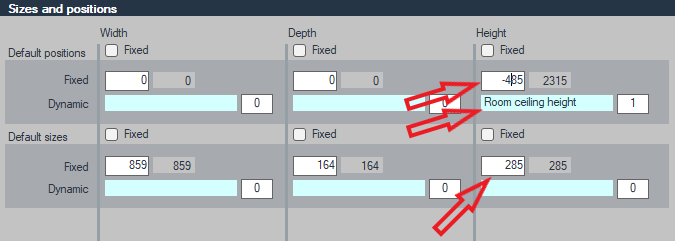

This can also be used for other wall-mounted objects. For instance, to place an air conditioner 200 mm below the ceiling, the starting, fixed height position, the height of the unit, and the distance from the wall should be summed up with a negative sign.

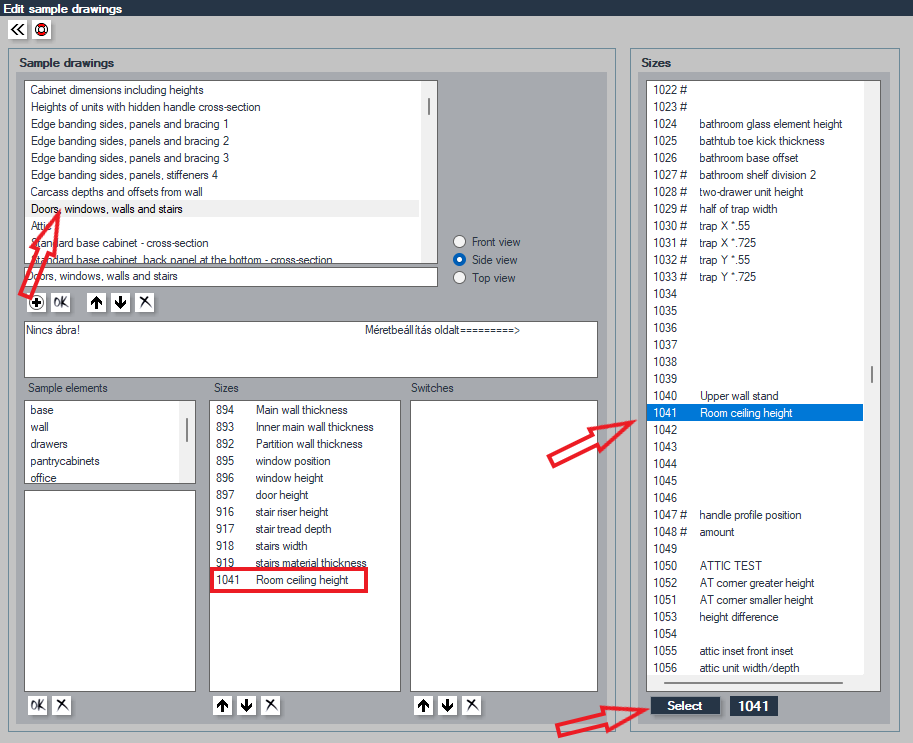

When adjusting the basic dimensions for the current plan, you can also set this by referencing the size diagram.
