Creating custom sizes

Where to create your own custom size system links

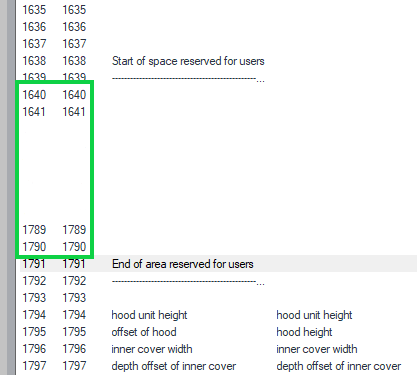

In Piper3D, there is currently space for 2100 dimensions in the Size system, with rows 1640 to 1790 reserved for users to save their custom dimensions.

The custom or calculated values created in this range can be imported into a new database later, ensuring that your work will not be lost in the future.

Creating a new size

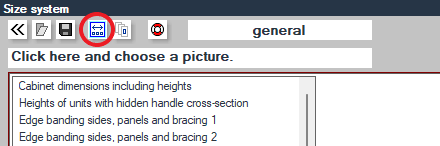

• Enter the dimension system and click on the edit icon to access the size system settings page.

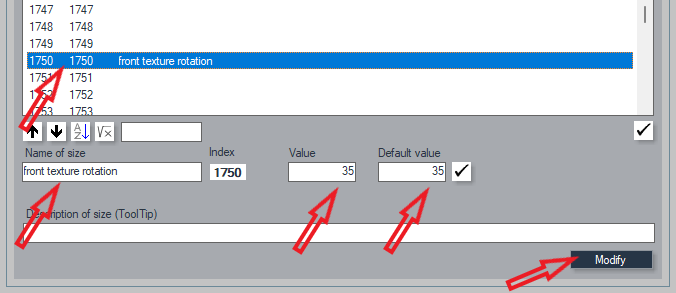

• Click on a desired row, then after providing the name, values, and optional tooltip text, click the Modify button.



Important! After creating the size, return from the edit page and click the save icon    to save it to the size system schema. Otherwise, the value will be zero when opening a new room.

Searching for size

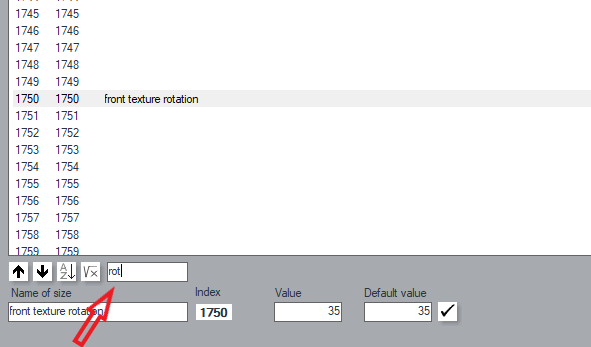

You can search through the dimensions by entering characters into the search field. Only the rows containing the entered characters will be displayed while scrolling. The search is case-sensitive and distinguishes between short and long vowels.
