Pricing tiles

Starting from the updated 3.8 version, it is possible to price tiles, which will appear in square meter prices in the Production Preparation and the price list.

Pricing tiles

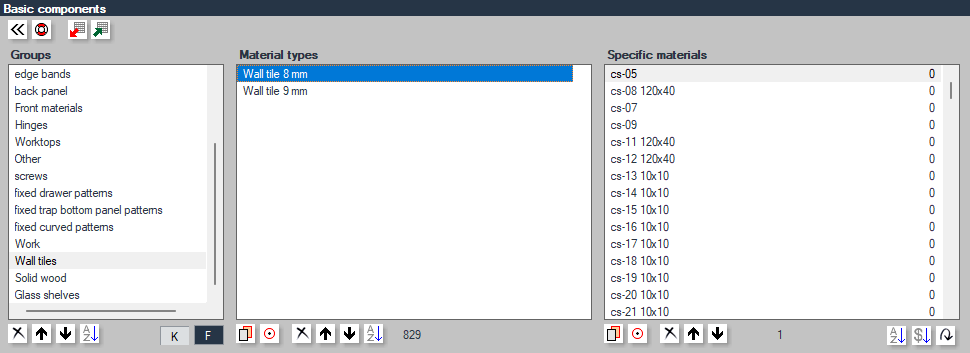

Tiles can be priced similarly to furniture boards in the materials section. Currently, there are two types of tile materials available, 8mm and 9mm thick. All tile colors have been assigned to these, and they can be priced individually.

Note! For the color price to appear in production and the price list, the color code of the used tiles must be specified in both the color editor and the specific materials.

For a description of how to assign color codes, click here. In our case, you just need to assign an arbitrary color code to the tile colors in both the color editor and the specific materials. The key is that the color code must match for the same color in the color editor and materials.

Arranging tiles

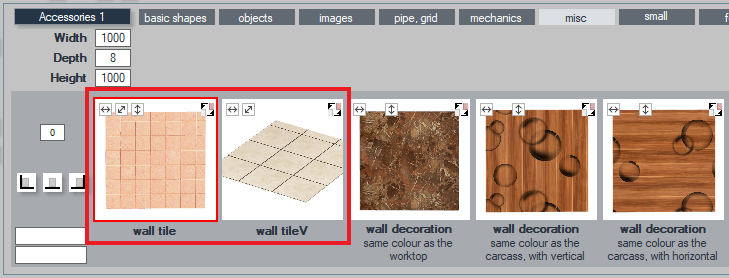

Tiles can be attached to the wall in the usual way, similar to worktops, or arranged from the Accessories 1 / Miscellaneous group under the names "tile" or "tileV." These can be spread over the entire wall or floor.

Tiles in Manufacturing preparation

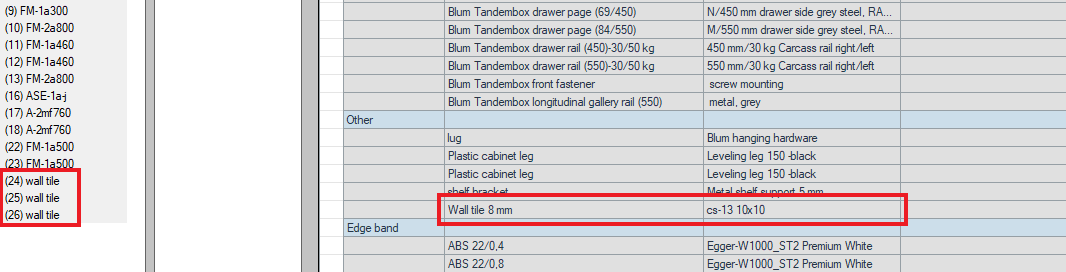

Tiles will appear in the Production Preparation as furniture items and can be found under the Tile group in the material summary.

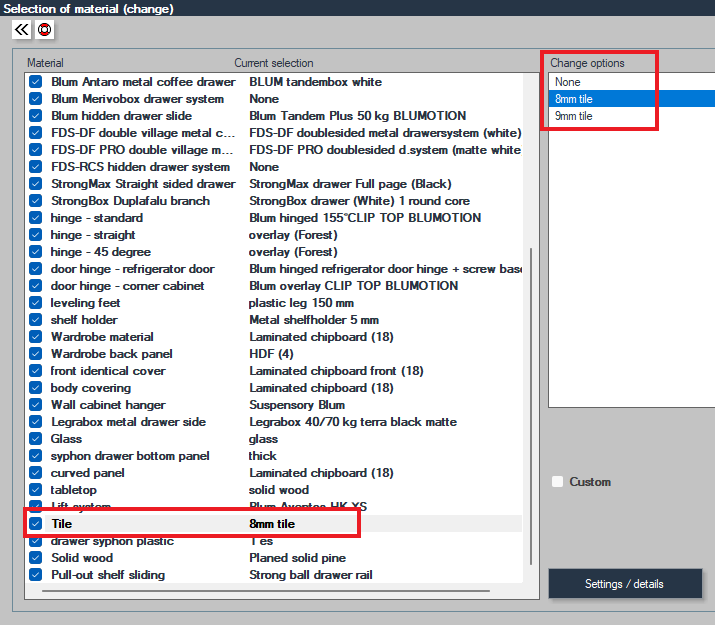

You can select their material in the material change section. Currently, 8mm and 9mm materials are available in the program, but you can add other materials to the base materials at any time.

If you don't want the tiles to appear in production, you can turn this off in the Furniture Cabinet database / Identification tab. Tiles can be found in the Accessories 1 / Miscellaneous folder.

If you don't want to see the listing in the current plan, simply select "None" in the material change section as shown above.

Keywords: #tile pricing #pricing tiles #tiles
