Creating an attic space (sloped ceiling)

Place the sloped ceiling as cabinet in the room like a normal wall, then rotate it.

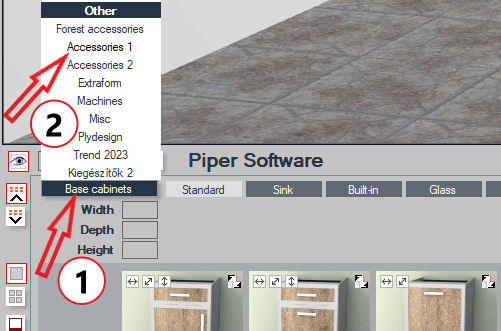

1. Click on the main group name to display the selectable main groups.

2. Select the Accessories 1 main group.

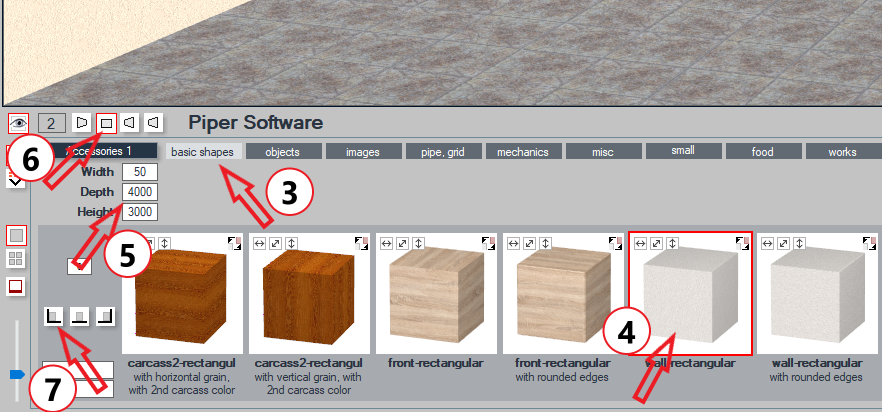

3. Select the basic shapes group.

4. Select the wall block.

5. Enter the required dimensions. Here, place a large standing panel against the opposite wall.

6. Choose a wall if the appropriate wall is not active. This can also be done automatically by rotating the room.

7. Place it in the left corner.

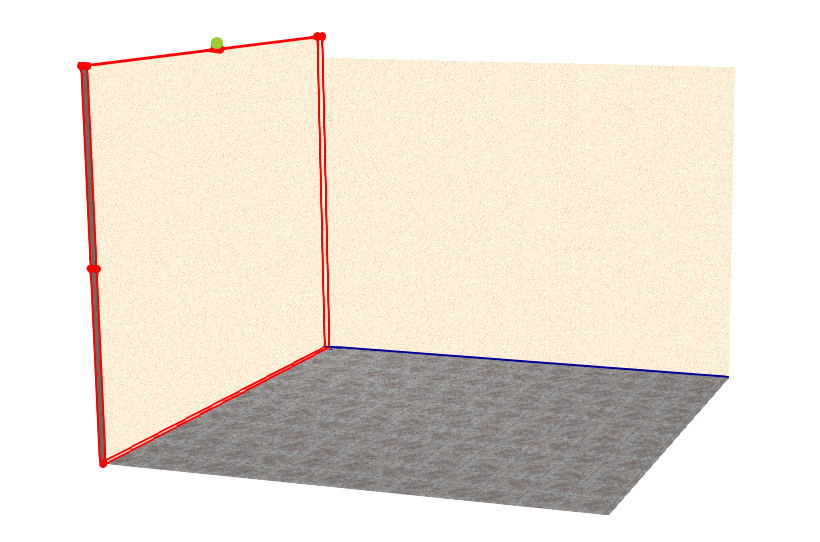

Result:

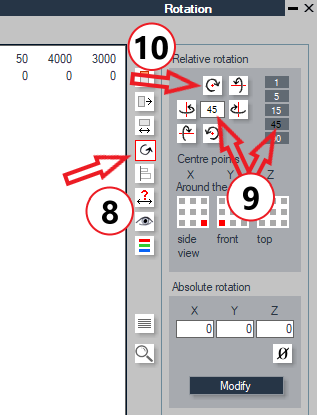

8. Select the rotation tab.

9. Enter the rotation value in degrees or click on the appropriate default value.

10. Click on the icon for rotating right around the Y axis.

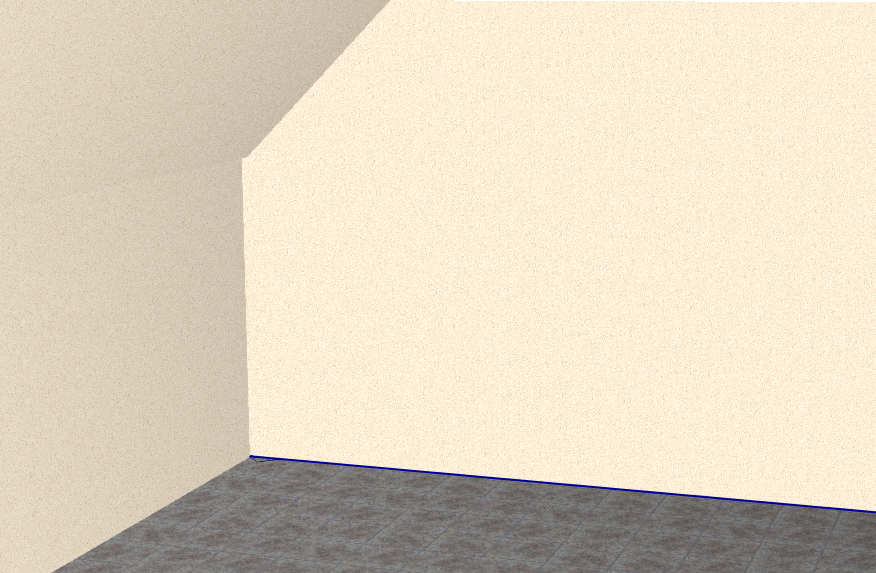

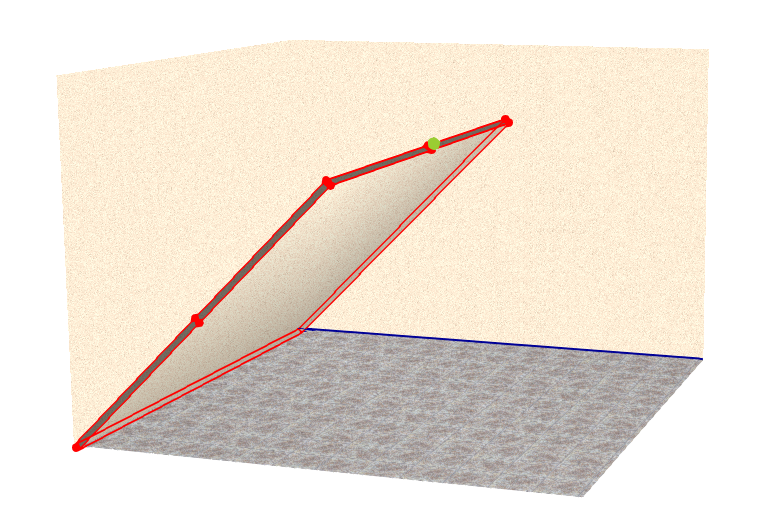

Result:

11. Move the sloped ceiling to the desired position with the mouse or by direct manipulation.

If the surface is too dark, lower one of the lights.
When cropping the final image, ensure that the overhanging parts are not visible!

Keywords: #sloped ceiling #attic space
