Creating a corner pillar or parapet wall

Place the pillar or parapet wall as cabinet in the room.

• Advantage: It’s simple, no additional walls.


• Disadvantage: It appears as furniture on the dimensioned floor plan.

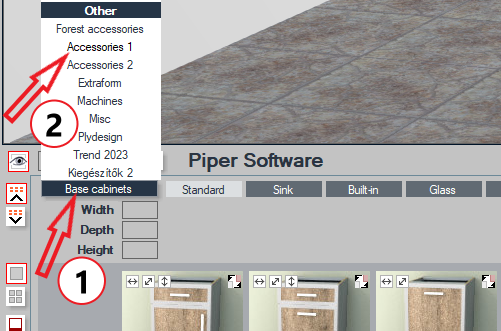

1. Click on the main group name to display the selectable main groups.

2. Select the Accessories 1 main group.

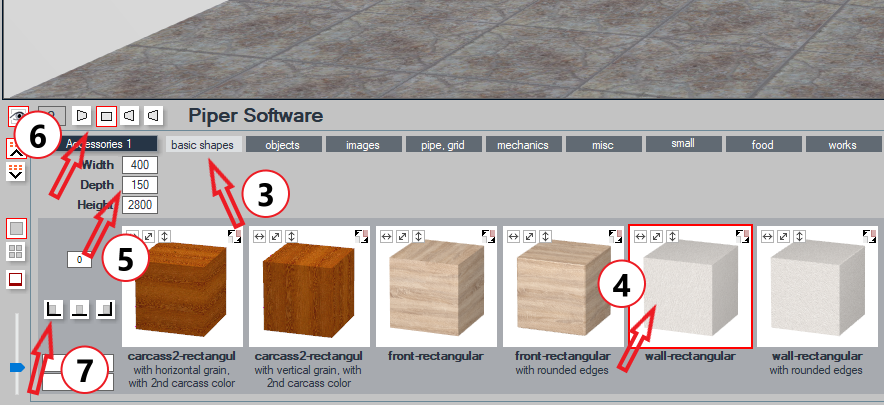

3. Select the basic shapes group.

4. Select the wall block.

5. Enter the required dimensions.

6. Choose a wall if the appropriate wall is not active. This can also be done automatically by rotating the room.

7. Place it in the room and move it to its position if it is not correctly placed.

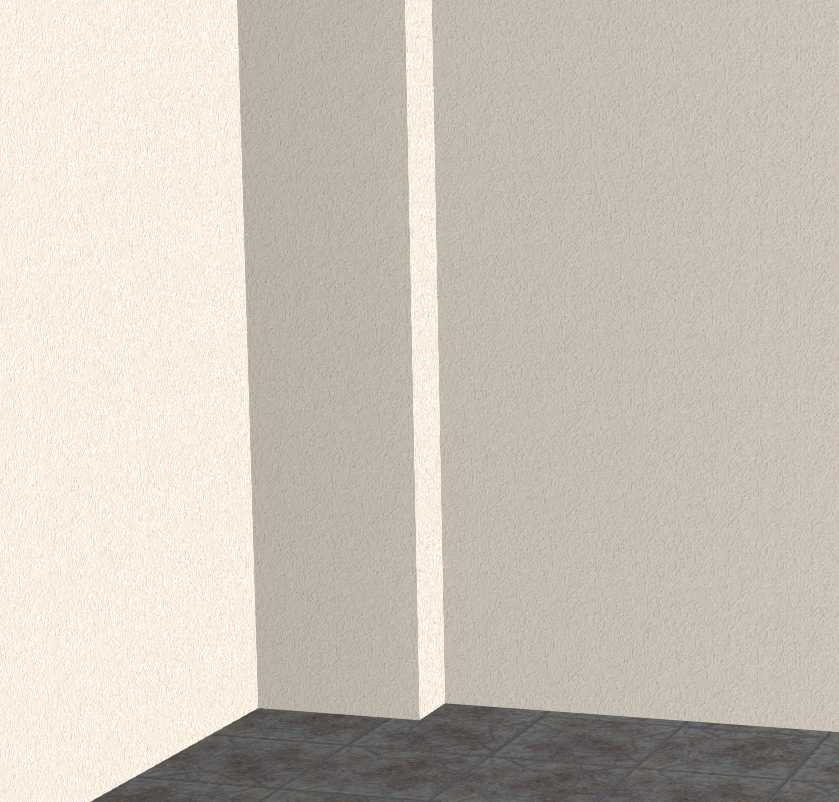

Result:

Keywords: #corner pillar #parapet wall
