Editing sample drawings

On this page, you can edit the dimension pages.

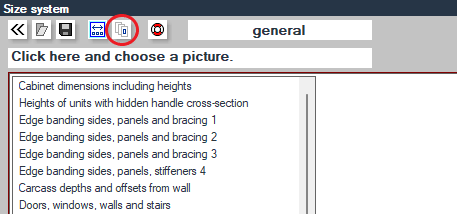

You can navigate from the dimension page to the sample drawings editing page using the highlighted icon.

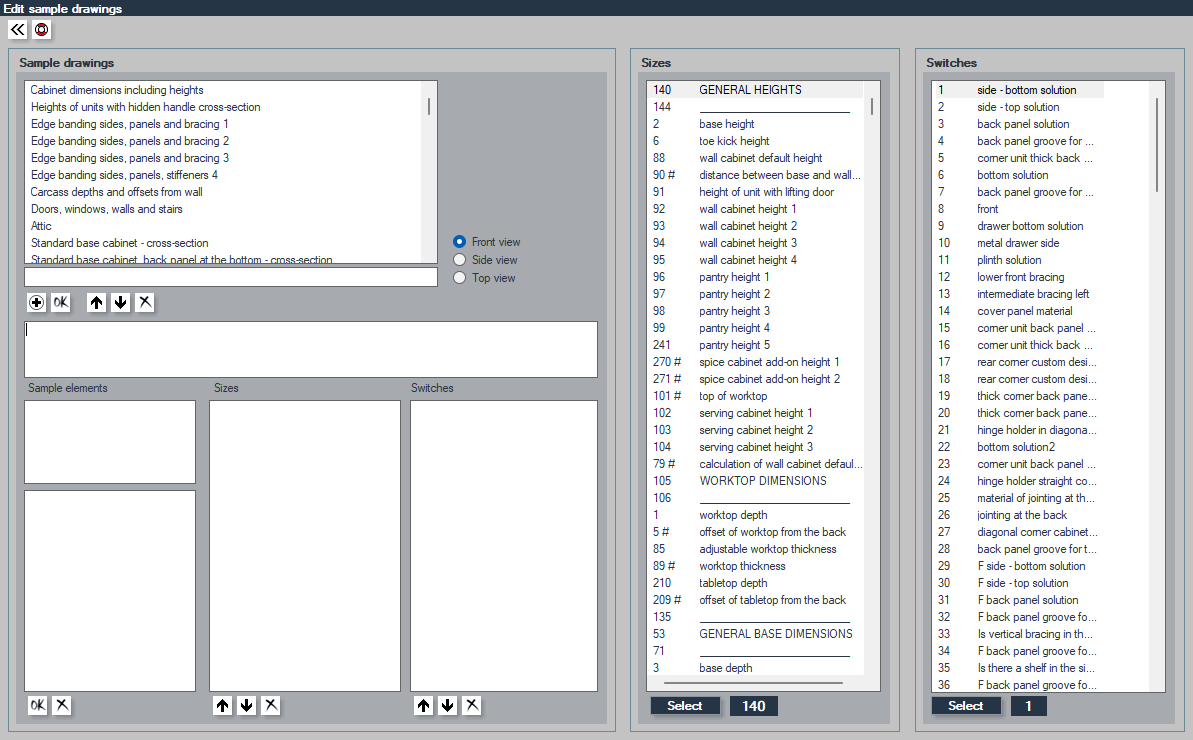

• Here, you can create and edit sample drawings that can be displayed on the dimension page.


  • These drawings are structural diagrams of furniture created in the same manner as any other element in the Cabinet editor section, with the addition of dimension lines. To save, they must be placed into a predefined main group, typically the "patterns" main group by default. You can change this assignment on the Cabinet database / Main groups, groups page.


• In the top left list, you'll find previously defined sample drawings. Selecting any allows you to move it within the list, delete, rename, adjust views, and create new ones.


  • Below are three columns displaying the content of the selected sample drawing:


  • The left column shows subgroups and saved furniture within the patterns main group. Here, you can associate the actual drawing with the sample drawing.


  • The middle column lists dimensions associated with and editable for the drawing. The right column lists switches. Here too, you can move and delete items.


  • The two long lists on the right contain all predefined dimensions and switches in the program. Use the add button to add new dimensions or switches to your sample drawings.
