What is the PipShow Viewer?
The PipShow Viewer is a program that allows your clients to walk through your PipShow-created plans in full 3D.
How to share plans with the PipShow Viewer?

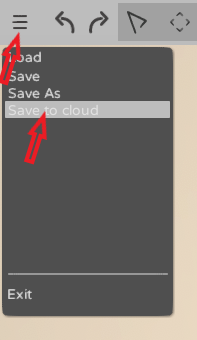

- Save your plan to the cloud in PipShow.
- Create an ID that also serves as a download link, which is copied to the clipboard. You can paste it into an email or save it in a text document.

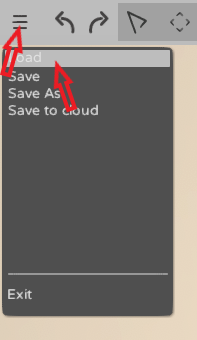

- In the menu, select "Load."

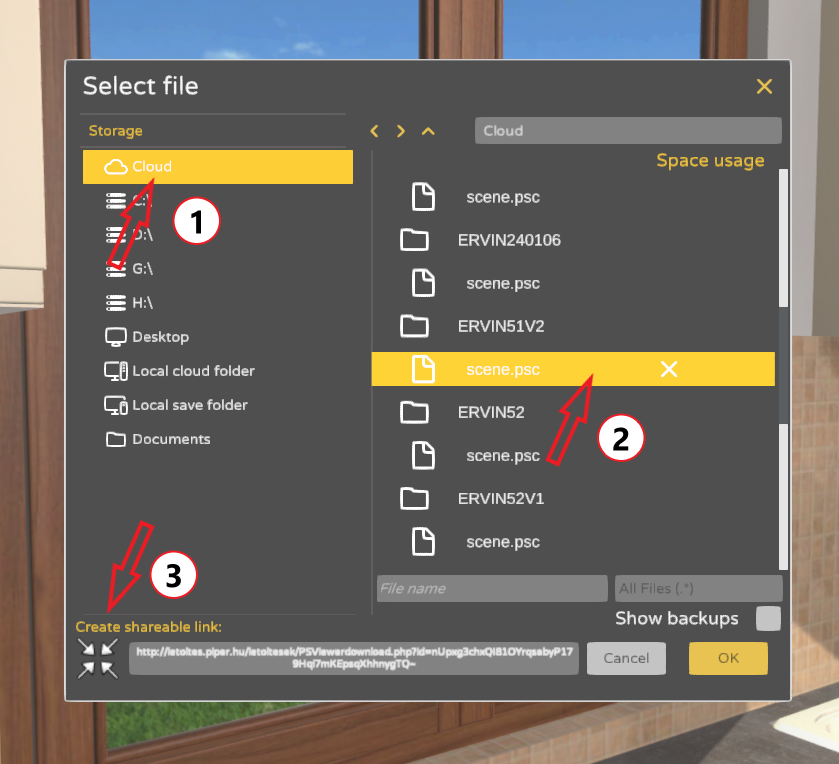

- In the popup window, select the cloud on the left,
- find and select the .psc file associated with your plan on the right,
- click to create the ID in the lower left corner.
- In the menu, select "Load."
- Send the link to your client. When they click on the link, the PipShow Viewer will be downloaded to their computer.
- Click Start to launch the program.

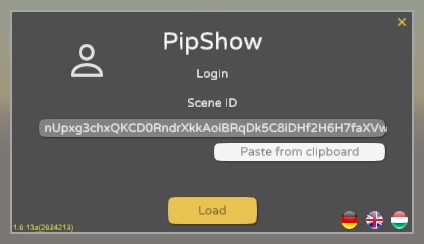

- The form will already contain the plan code. Click the yellow Load button to download the scene from the cloud. You can also select the language before loading.

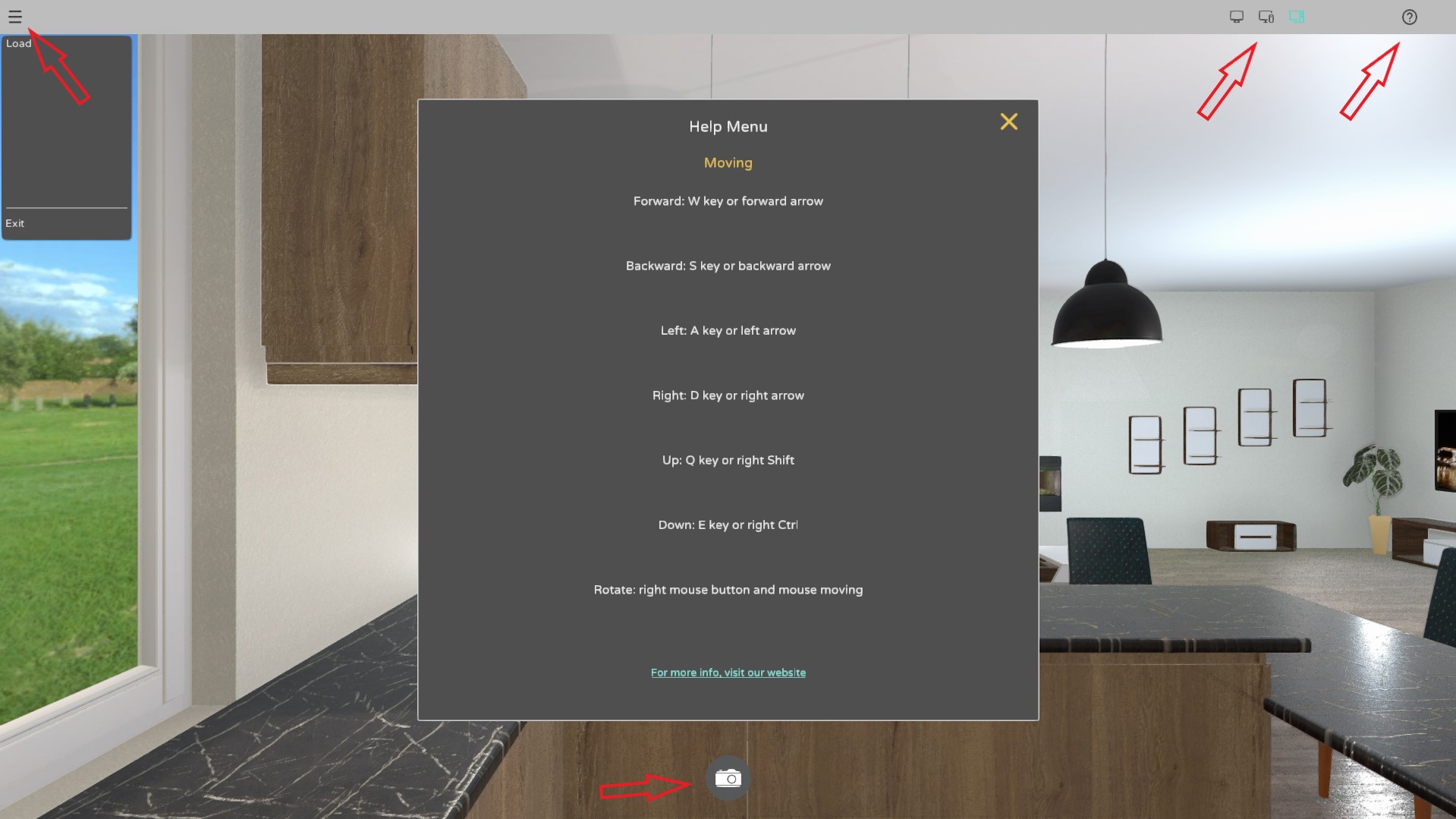

- The Client can find help for using the viewer in the top right corner, and can exit the program from the left side. In the top right corner, the three icons allow adjusting the quality based on the computer's performance. By clicking the camera icon in the center bottom, the client can save images from any position.

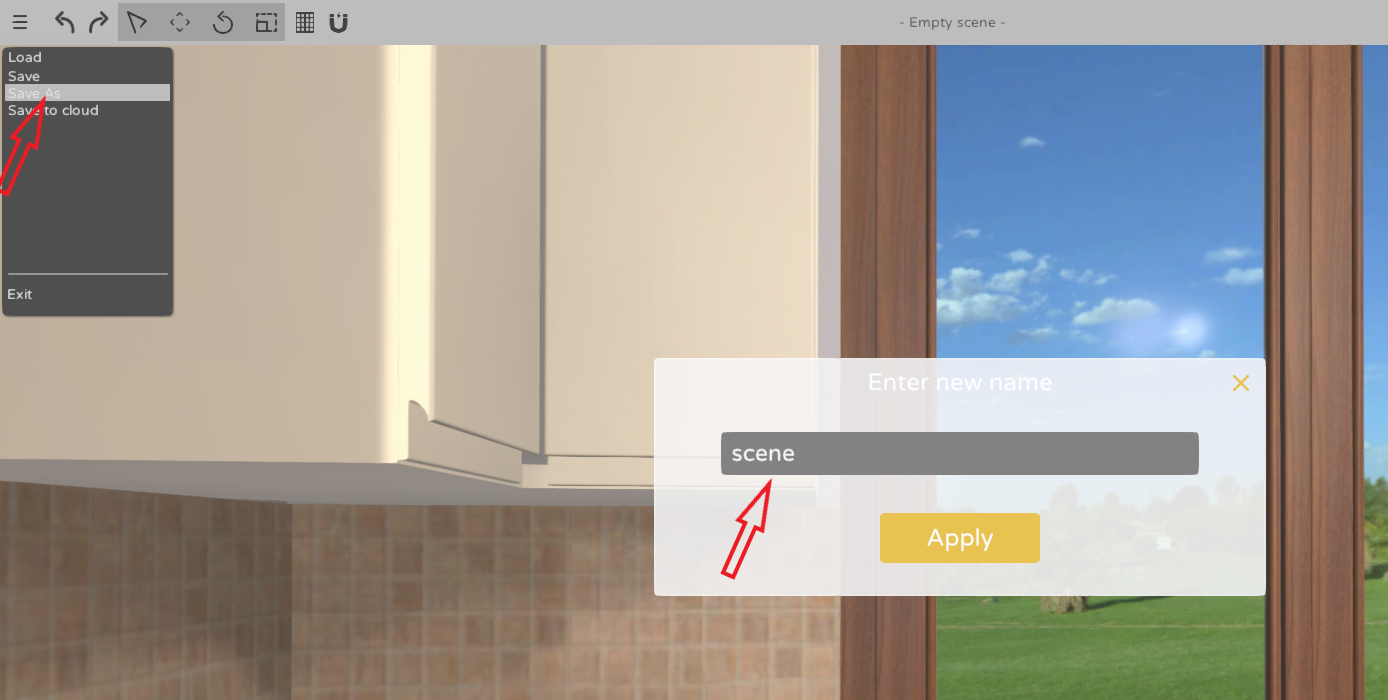

If we create multiple versions of a design (due to different lighting conditions such as day and night, various color schemes, or furniture rearrangements), it must be saved using "save as" and uploaded to the cloud separately, creating an identifier and sending it.
When sending multiple designs (identifiers), during the download, several shortcuts are created to the save location, and later, clicking on these will start the plan walkthrough.
If we overwrite the plans in the cloud with the same name, the Client will always see the last saved version when downloading.

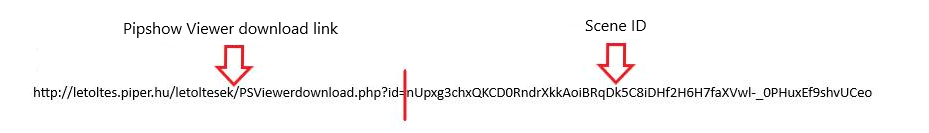

As a check, we can also download the program, but in this case, it’s recommended to separate the download link and the identifier.
By labeling the identifiers—who, when, what, and in what version we created—we can store them as a list in a document, also marking the deletion date due to storage capacity and expiration.

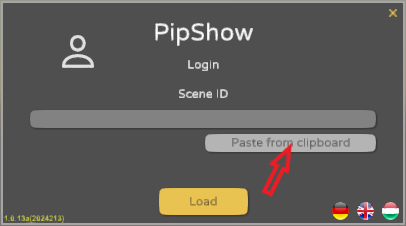

For control, simply copy (Ctrl+C) the selected scene identifier and paste it into the opened viewer, pressing "Paste from clipboard" and "Load" buttons one after the other.
If you delete the identifier part from the PipShow Viewer shortcut name, the program will start with a blank screen.
The first-year fee for PipShow Viewer is included in the price of PipShow, after which it must be renewed annually.
Would you like to try the PipShow Viewer program?
Copy the link below into your web browser's address bar:
Keywords: #pipshow viewer #plan sharing #test scene
