Adjusting front size limits

The selected front does not appear above a certain width or height? How do I adjust the size limits of a front?

It's very easy to set the width and/or height range in which a certain variation of a front should appear.

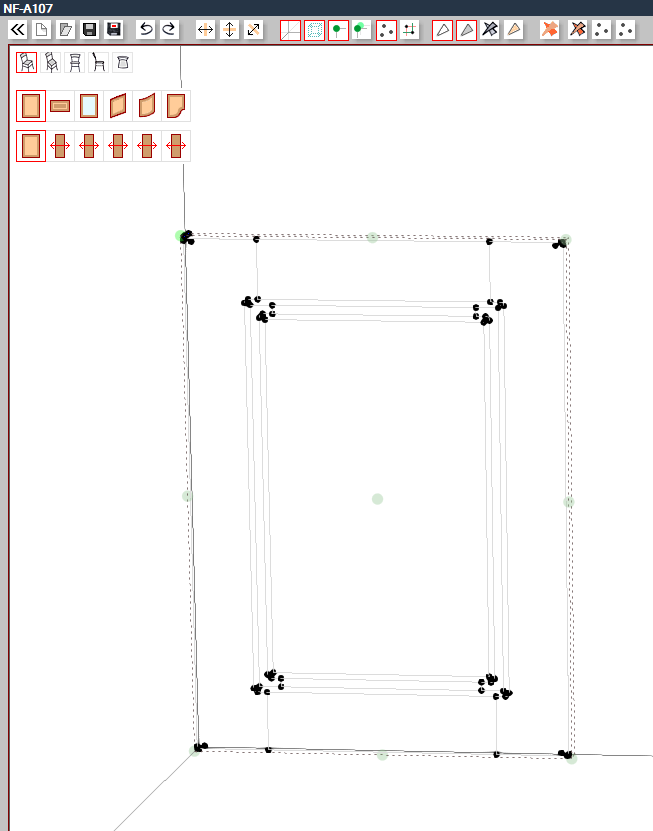

1. Enter the Object designer (Ctrl+O).

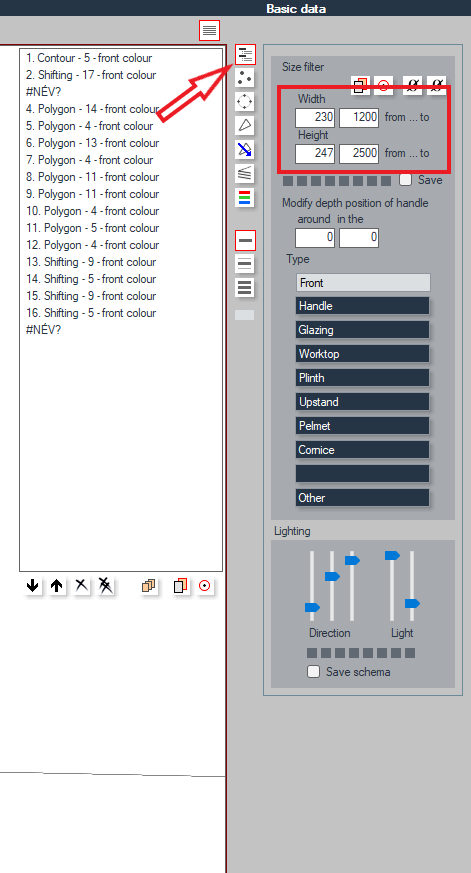

2. Click on the topmost icon on the right toolbar (Basic data).

3. Set the desired size range.

4. Save the front.
