Surfaces - Cylinder

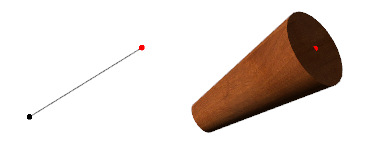

A surface defined by two points.

You need to specify the center points of the base and top of the cylinder. Since the radii of the base and top can be set separately, this allows for the definition of both cylinders and cones.

Parameters

Resolution

Specifies how many segments make up the cylinder. If set to 0, the default value is used (24).

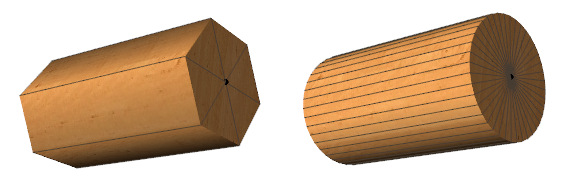

The surface of the cylinder is always smoothed, and even with low values, the segments do not separate. If you want separated segments, you can create them with a revolution surface.

Starting radius, ending radius

Here you can set the radii of the base and top separately. The value can also be 0.
