Changing the corner point position of linear elements

How can I move the position of the white points?

It may happen that the corner points of linear elements do not appear at the desired locations on the furniture. There are two ways to solve this problem:

1. You can move the selected point along the X and Y axes while drawing the linear element.

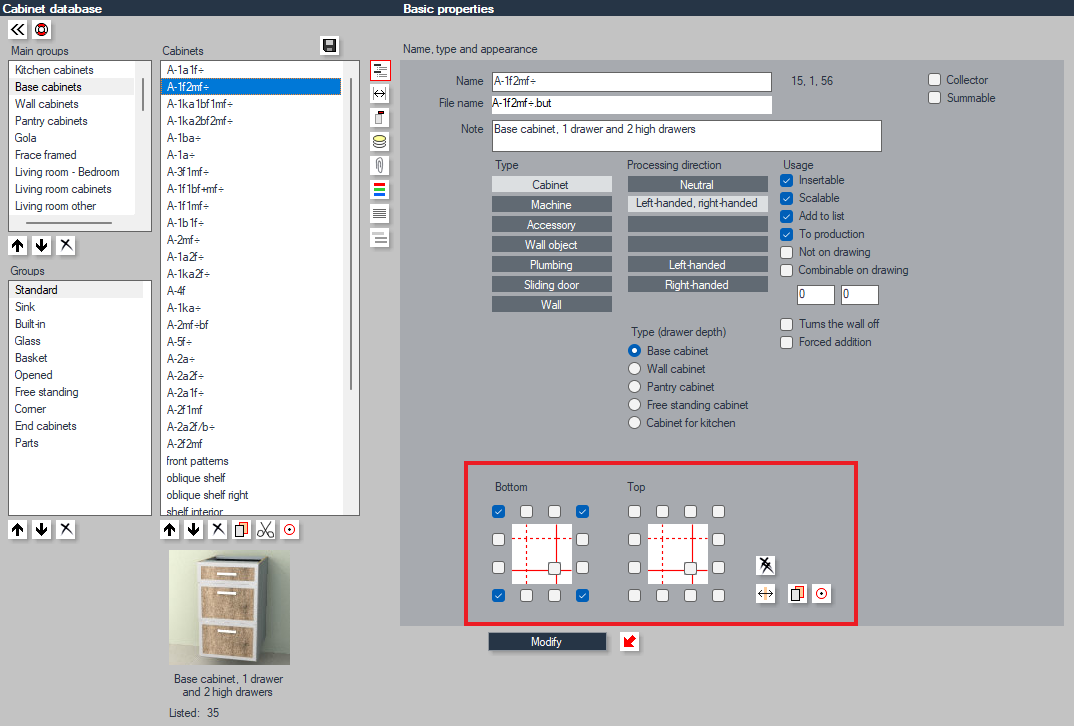

2. Alternatively, you can set the base points for the decorative trim on the Cabinet database / Identification page. Here, you can mark the base points on the top and bottom view planes of the furniture to place them where you want.

Keywords: #corner point #white point #base point
