Edge banding settings

Setting edge banding and methods

• Starting from version 3.7, edge banding for carcass can be set in three places: in the Basic elements, in the Cabinet editor, and from version 3.7 in the Size system.


• Each element edge has three edge banding positions: no edge banding, primary edge banding, and secondary edge banding.


• In the design interfaces (basic elements, cabinet editor), primary edge banding is symbolically marked in red, secondary in green. The element edge is "wood-colored" if there is no edge banding.

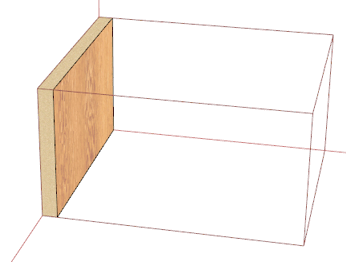

Primary (red) and secondary (green) edge banding in basic elements drawing view.	No edge banding in basic elements drawing view

• Edge banding can also be set for certain fronts and worktops, but there is no secondary edge banding for these.


• You can adjust the edge banding colours in the properties window. Set the front edge banding in the front properties, carcass edge banding in the corpus properties, and worktop edge banding in the worktop properties.


• If no specific colour is chosen, the edge banding colour will default to the material colour.

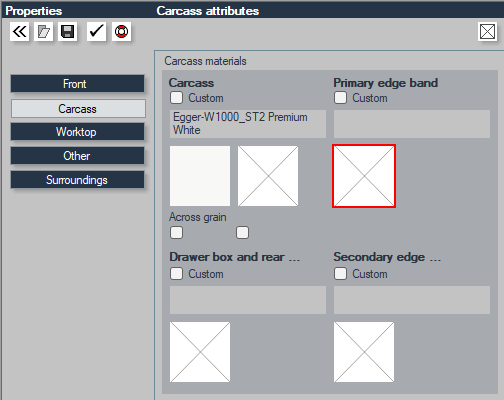

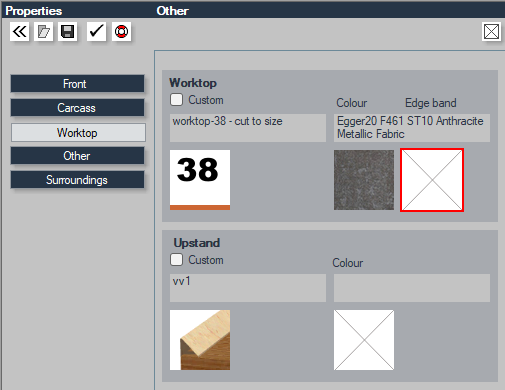

Setting edge banding colour for front	Setting edge banding colours for carcass	Setting edge banding colour for worktop

• In the size system and basic elements, edge banding can be set at the basic element level. In the cabinet editor, unique edge banding can be assigned to cabinet pieces.


• • If you want to set edge banding for all cabinet on a given basic element, it's advisable to do it in the basic elements menu or the size system.


  • If you want to set edge banding for a specific piece of cabinet, it's best to do this in the furniture designer. The edge banding setting in the cabinet editor will always override the basic element edge banding setting.


  • If you want to adjust the edge banding for one or more pieces of cabinet currently in the room, use the unique function in the size system.


• The thickness and specific material of the edge banding can be selected on the Material replacement page, accessible from the production preparation window.



Setting edge banding in the size system

The edge banding settings in the size system are available on the Edge banding sides, panels and bracing pages.

• Each edge banding has three positions, adjustable with switches: no edge banding, primary edge banding, secondary edge banding.


• With the custom option, you can set the edge banding of selected furniture individually.


  • Select the cabinet you want to set custum edge banding for.


  • Click on the size system icon.

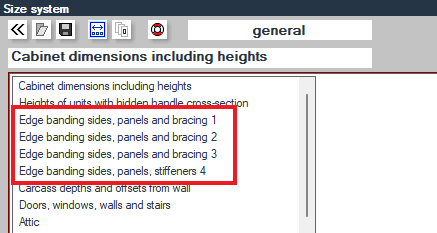

  • On the size system page, select one of the Edging banding sides, panels and bracing sides (1, 2, 3, or 4, depending on which edging you want to adjust).


  • Select the desired edge banding switches.


  • Check the Custom checkbox.


  • Click the Modify button.

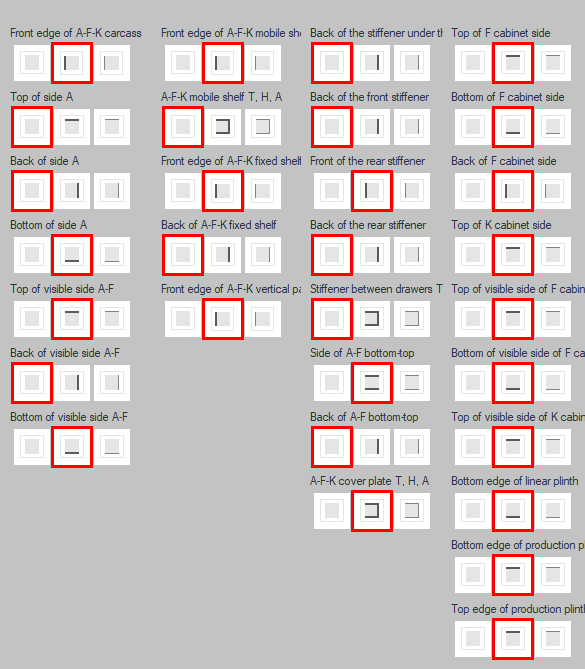

• The following edge banding settings are available in the size system on the four different size system pages:
